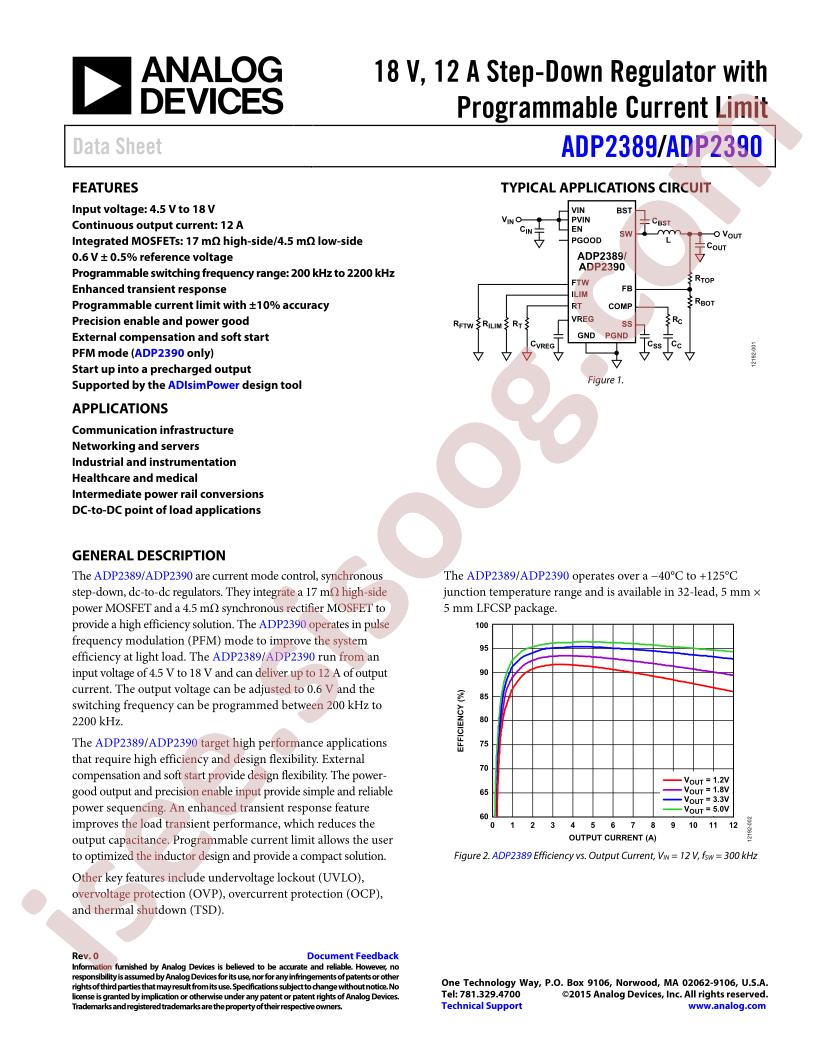

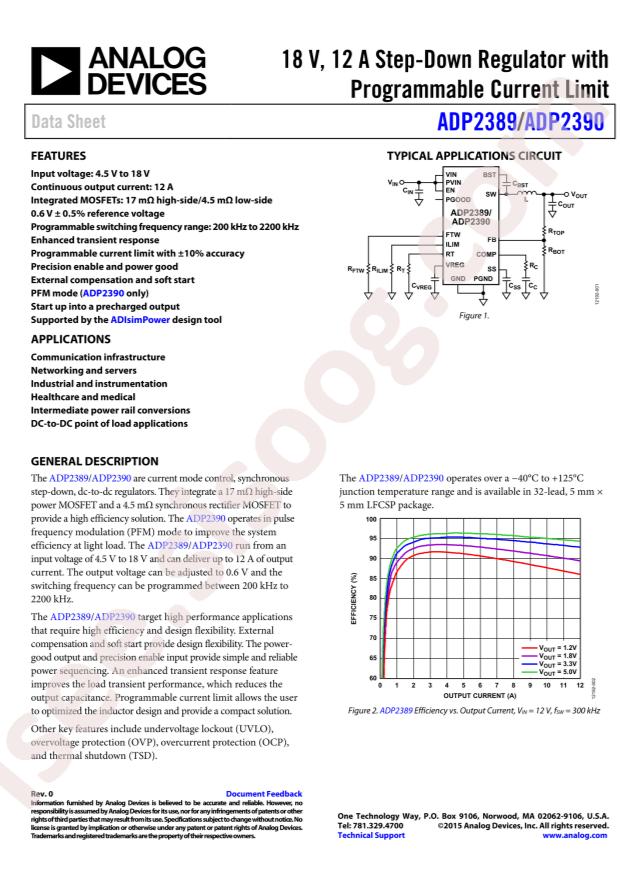

دیتاشیت ADP2389ACPZ-R7
مشخصات دیتاشیت
نام دیتاشیت |
ADP2389,90
|
حجم فایل |
785.79
کیلوبایت
|
نوع فایل |
pdf
|
تعداد صفحات |
23
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Analog Devices ADP2389ACPZ-R7
-
Output Type:
Adjustable
-
Input Voltage:
4.5V~18V
-
Output Voltage:
0.6V~18V
-
Number of Outputs:
1
-
Switching Frequency:
2.2MHz
-
Output Current (Max):
12A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
LFCSP-32
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
4.5V
-
Voltage - Input (Max):
18V
-
Voltage - Output (Min/Fixed):
0.6V
-
Voltage - Output (Max):
18V
-
Current - Output:
12A
-
Frequency - Switching:
200kHz ~ 2.2MHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
32-VFQFN Exposed Pad, CSP
-
Supplier Device Package:
32-LFCSP-VQ (5x5)
-
Base Part Number:
ADP2389
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 32-VFQFN Exposed Pad, CSP
