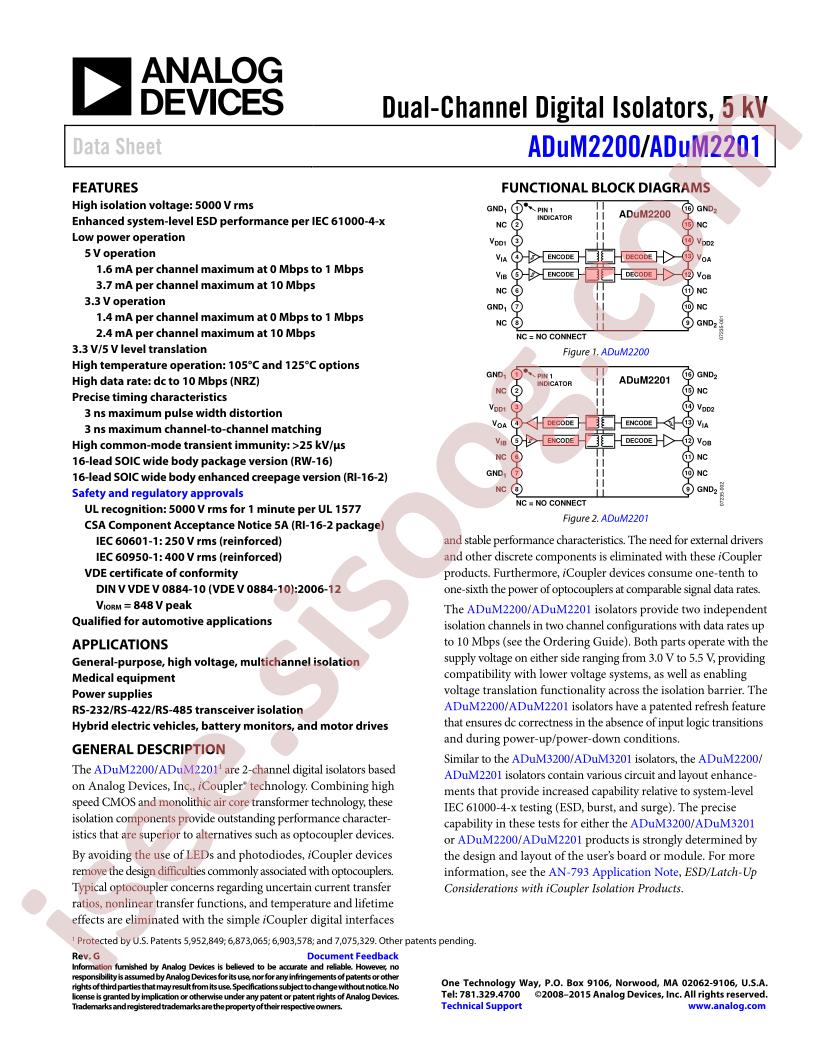

دیتاشیت ADUM2201ARWZ-RL
مشخصات دیتاشیت
| نام دیتاشیت |
ADuM2200,2201
|
| حجم فایل |
376.295
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
Manufacturer:
Analog Devices Inc.
-
Series:
iCoupler®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
General Purpose
-
Isolated Power:
No
-
Number of Channels:
2
-
Inputs - Side 1/Side 2:
1/1
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
5000Vrms
-
Common Mode Transient Immunity (Min):
25kV/µs
-
Data Rate:
1Mbps
-
Propagation Delay tpLH / tpHL (Max):
150ns, 150ns
-
Pulse Width Distortion (Max):
40ns
-
Rise / Fall Time (Typ):
10ns, 10ns
-
Voltage - Supply:
3V ~ 5.5V
-
Operating Temperature:
-40°C ~ 105°C
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.295", 7.50mm Width)
-
Supplier Device Package:
16-SOIC
-
Base Part Number:
ADUM2201
-
detail:
General Purpose Digital Isolator 5000Vrms 2 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
