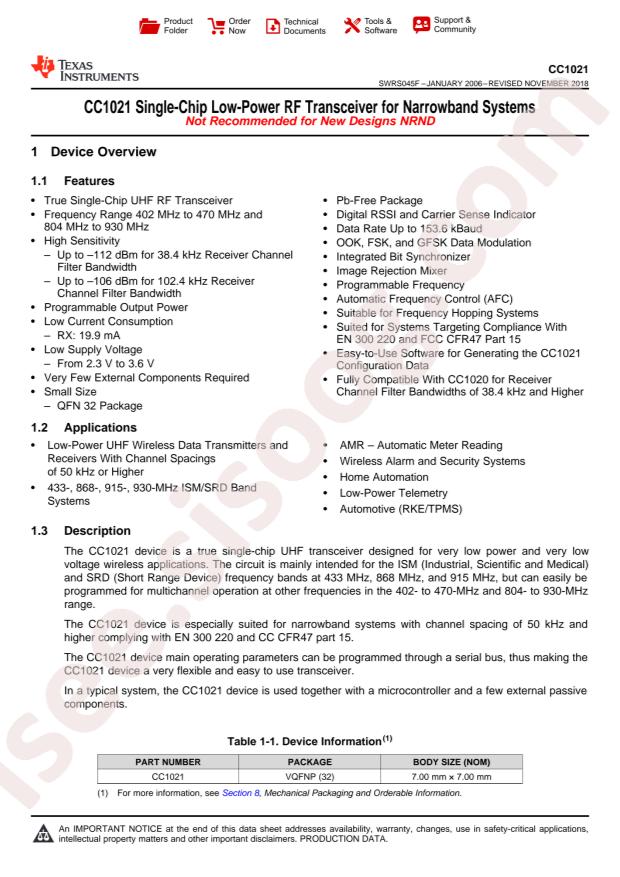

CC1021RSSR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CC1021RSSR
|
|
حجم فایل
|
108.194
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
90
|
مشخصات فنی
-
RoHS:
true
-
Category:
Radio Frequency Chip/Antenna/RF Transceiver ICs
-
Datasheet:
Texas Instruments CC1021RSSR
-
Interface:
SPI,UART
-
Applications:
General-purpose ISM<1GHz
-
Frequency Range:
402MHz~470MHz;804MHz~960MHz
-
Receive Current:
19.9mA
-
Operating Voltage:
2.3V~3.6V
-
Operating Temperature:
-40°C~+85°C
-
Current Of Transmitting:
12.3mA
-
Package:
QFN-32-EP(7x7)
-
Manufacturer:
Texas Instruments
-
Type:
TxRx Only
-
Sensitivity:
-109dBm
-
Base Part Number:
CC1021
-
Current - Transmitting:
12.3mA ~ 27.1mA
-
Frequency:
402MHz ~ 470MHz, 804MHz ~ 960MHz
-
Package / Case:
32-VQFN Exposed Pad
-
Memory Size:
-
-
Modulation:
FSK, GFSK, OOK
-
Voltage - Supply:
2.3V ~ 3.6V
-
GPIO:
1
-
Series:
-
-
RF Family/Standard:
General ISM < 1GHz
-
Protocol:
-
-
Supplier Device Package:
32-QFN (7x7)
-
Packaging:
Cut Tape (CT)
-
Part Status:
Discontinued at Digi-Key
-
Mounting Type:
Surface Mount
-
Serial Interfaces:
SPI, UART
-
Power - Output:
10dBm
-
Data Rate (Max):
153.6kBaud
-
Current - Receiving:
19.9mA
-
detail:
IC RF TxRx Only General ISM < 1GHz 402MHz ~ 470MHz, 804MHz ~ 960MHz 32-VQFN Exposed Pad
