دیتاشیت AD7175-2BRUZ-RL7
مشخصات دیتاشیت
| نام دیتاشیت | AD7175-2 Series |
|---|---|
| حجم فایل | 1107.414 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 62 |

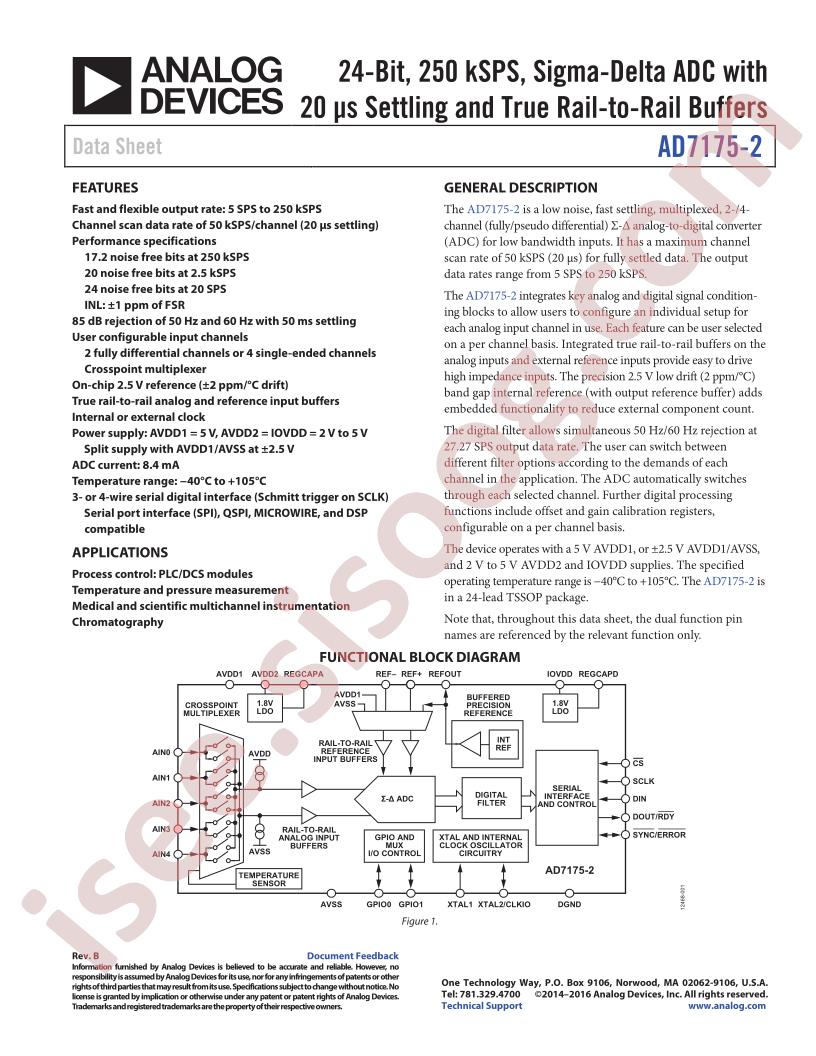

دانلود دیتاشیت AD7175-2 Series |
AD7175-2 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD7175-2BRUZ-RL7
- Interface: SPI;DSP
- resolution: 24Bit
- Supply Voltage: 2V~5.5V
- differential input: Yes
- number of channels: 2;4
- sampling frequency: 250kHz
- Operating Temperature: -40°C~+105°C
- Package: TSSOP-24
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Number of Bits: 24
- Sampling Rate (Per Second): 250k
- Number of Inputs: 2, 4
- Input Type: Differential, Pseudo-Differential, Single Ended
- Data Interface: SPI, DSP
- Configuration: MUX-ADC
- Ratio - S/H:ADC: -
- Number of A/D Converters: 1
- Architecture: Sigma-Delta
- Reference Type: External, Internal
- Voltage - Supply, Analog: 2V ~ 5.5V
- Voltage - Supply, Digital: 2V ~ 5.5V
- Features: Temperature Sensor
- Package / Case: 24-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 24-TSSOP
- Mounting Type: Surface Mount
- Base Part Number: AD7175
- detail: 24 Bit Analog to Digital Converter 2, 4 Input 1 Sigma-Delta 24-TSSOP
