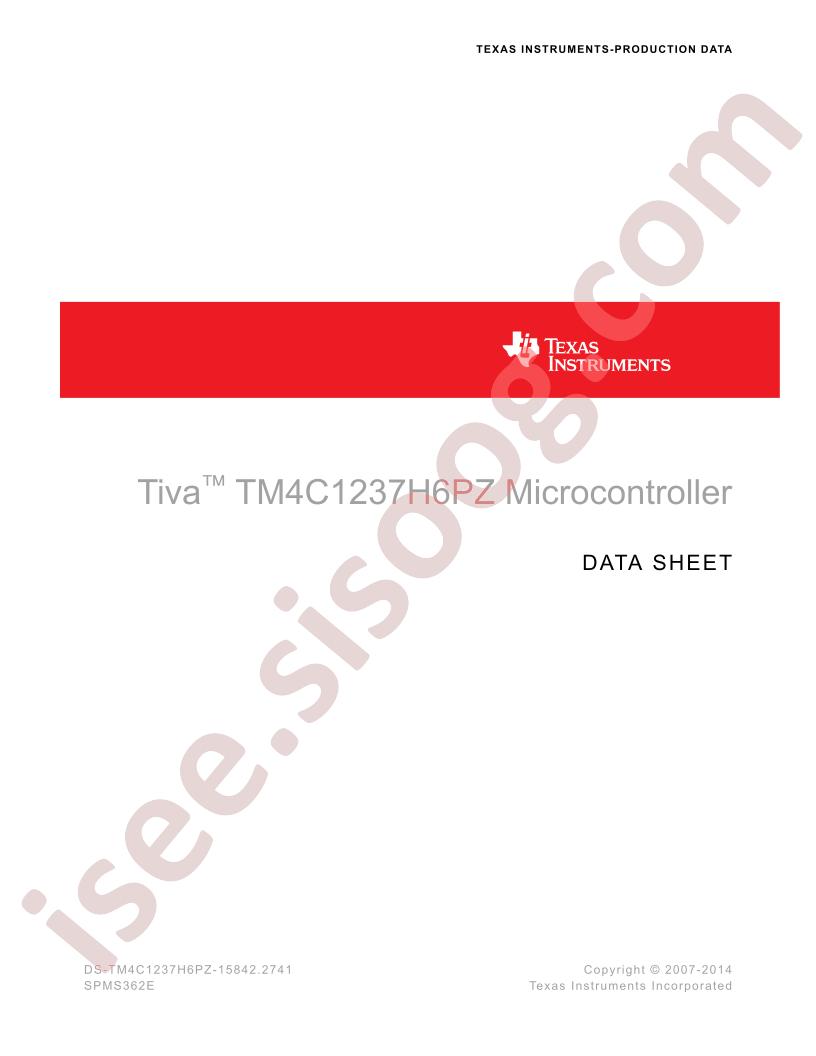

- دیتاشیت TM4C1237H6PZ
TM4C1237H6PZ دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TM4C1237H6PZ |
|---|---|
| حجم فایل | 8116.954 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 1308 |
دانلود دیتاشیت TM4C1237H6PZ |
دانلود دیتاشیت |
|---|
سایر مستندات
TM4C1237H6PZIR 1308 pages
مشخصات فنی
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: 256KB
- CPU Core: ARM-MSeries
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 32KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): -
- Datasheet: Texas Instruments TM4C1237H6PZI7R
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 80MHz
- GPIO Ports Number: 69
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;WDT;IrDA
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 256KB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 1.08V~3.63V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-100(14x14)
- Manufacturer: Texas Instruments
- Peripherals: Brown-out Detect/Reset, DMA, POR, WDT
- Voltage - Supply (Vcc/Vdd): 1.08V ~ 3.63V
- Base Part Number: TM4C
- Speed: 80MHz
- Package / Case: 100-LQFP
- EEPROM Size: 2K x 8
- Supplier Device Package: 100-LQFP (14x14)
- Series: Tiva™ C
- Operating Temperature: -40°C ~ 85°C (TA)
- Number of I/O: 69
- Oscillator Type: Internal
- Part Status: Active
- Mounting Type: Surface Mount
- Core Size: 32-Bit
- Connectivity: CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG
- Program Memory Size: 256KB (256K x 8)
- Core Processor: ARM® Cortex®-M4F
- Packaging: Tray
- Data Converters: A/D 24x12b
- detail: ARM® Cortex®-M4F Tiva™ C Microcontroller IC 32-Bit 80MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
