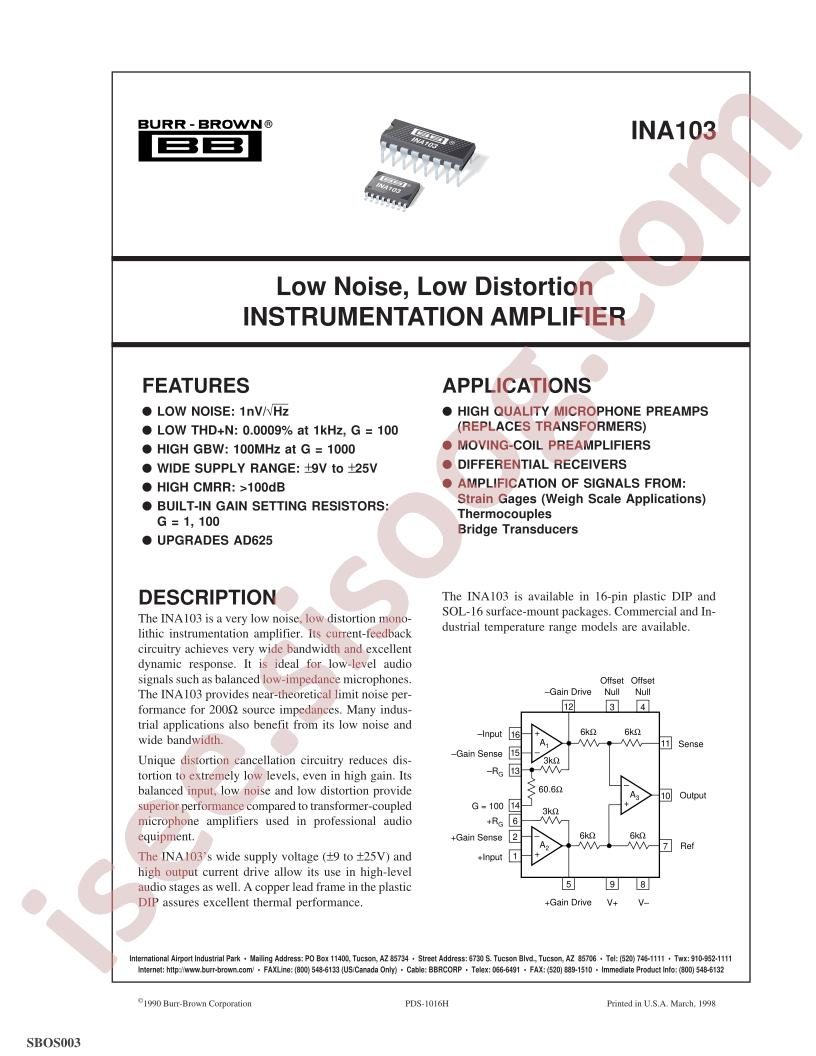

INA103KU/1KG4 Datasheet
Datasheet specifications
| Datasheet's name | INA103 |
|---|---|
| File size | 1597.607 KB |
| File type | |
| Number of pages | 22 |
Download Datasheet INA103 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Package: SOIC-16-300mil
- Manufacturer: Texas Instruments
- Series: -
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Number of Circuits: 1
- Current - Supply: 9mA
- Voltage - Input Offset: 30µV
- Mounting Type: Surface Mount
- Part Status: Active
- Slew Rate: 15V/µs
- Voltage - Supply, Single/Dual (±): ±9V ~ 25V
- Operating Temperature: 0°C ~ 70°C
- Amplifier Type: Instrumentation
- Current - Output / Channel: 40mA
- -3db Bandwidth: 6MHz
- Packaging: Tape & Reel (TR)
- Base Part Number: INA103
- Current - Input Bias: 2.5µA
- Output Type: -
- Supplier Device Package: 16-SOIC
- detail: Instrumentation Amplifier 1 Circuit 16-SOIC
