SN74ALS29863DW دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت SN74ALS29863DW	دانلود دیتاشیت

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver

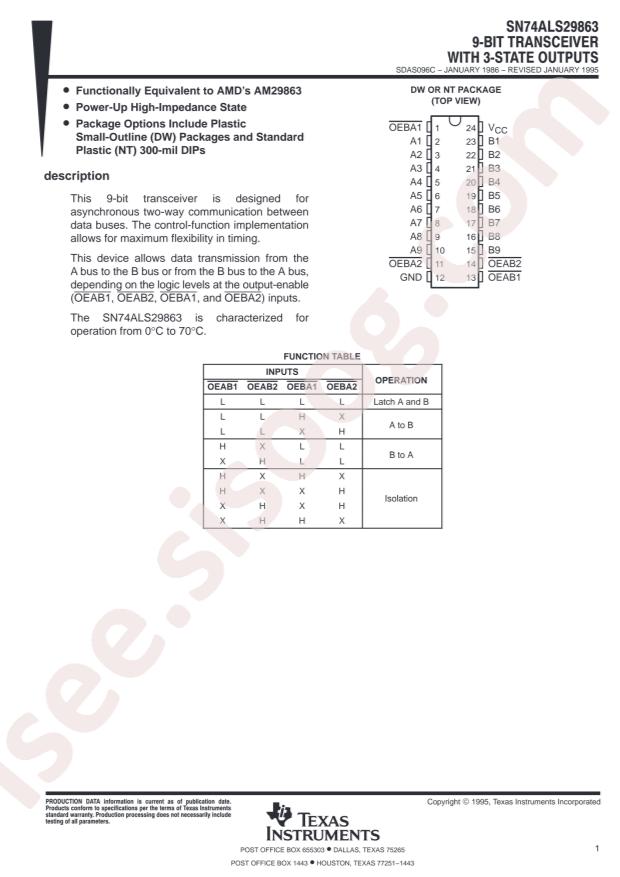

Datasheet: Texas Instruments SN74ALS29863DW
output type: Tri-State
Logic Family: 74ALS
Sink Current: 48mA
Source Current: 24mA
Supply Voltage: 4.75V~5.25V
Number of Channels: 9
Operating Temperature: 0°C~+70°C
Package: SOIC-24-300mil
Manufacturer: Texas Instruments
Series: 74ALS
Package / Case: 24-SOIC (0.295", 7.50mm Width)
Number of Bits per Element: 9
Number of Elements: 1
Supplier Device Package: 24-SOIC
Part Status: Active
Current - Output High, Low: 24mA, 48mA
Mounting Type: Surface Mount
Base Part Number: SN74ALS2
Voltage - Supply: 4.75V ~ 5.25V
Packaging: Tube
Input Type: -
Logic Type: Transceiver, Non-Inverting
detail: Transceiver, Non-Inverting 1 Element 9 Bit per Element 3-State Output 24-SOIC
