دیتاشیت ADP7156ARDZ-3.3-R7

ADP7156 Series

مشخصات دیتاشیت

نام دیتاشیت ADP7156 Series
حجم فایل 636.366 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت ADP7156 Series

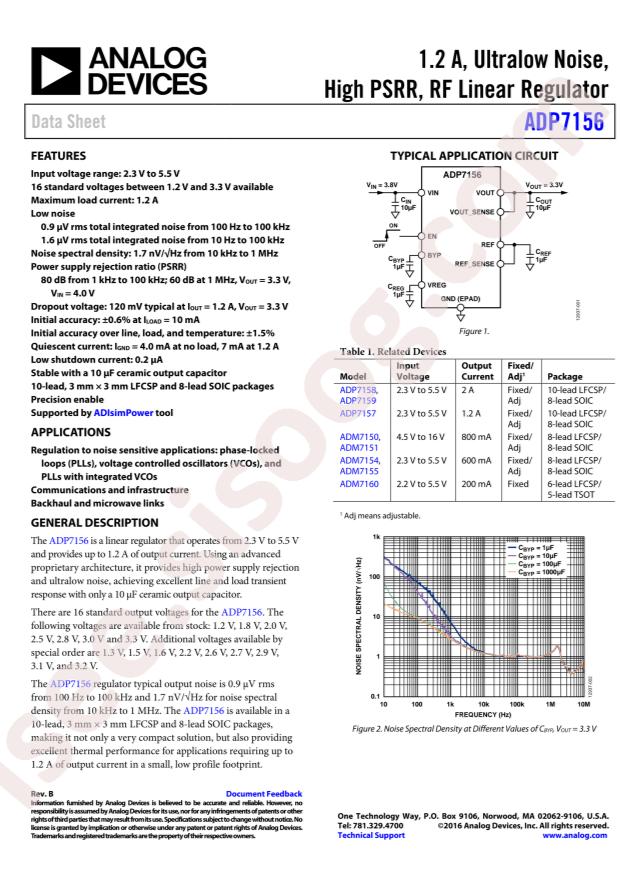

ADP7156 Series Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 3.3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.17V @ 1.2A
  • Current - Output: 1.2A
  • Current - Quiescent (Iq): 8mA
  • Current - Supply (Max): 12mA
  • PSRR: 80dB ~ 60dB (1kHz ~ 1MHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: 8-SOIC-EP
  • Base Part Number: ADP7156
  • detail: Linear Voltage Regulator IC 1 Output 1.2A 8-SOIC-EP
