دیتاشیت ADS7861E/2K5G4

ADS7861

مشخصات دیتاشیت

نام دیتاشیت ADS7861
حجم فایل 2202.036 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

دانلود دیتاشیت ADS7861

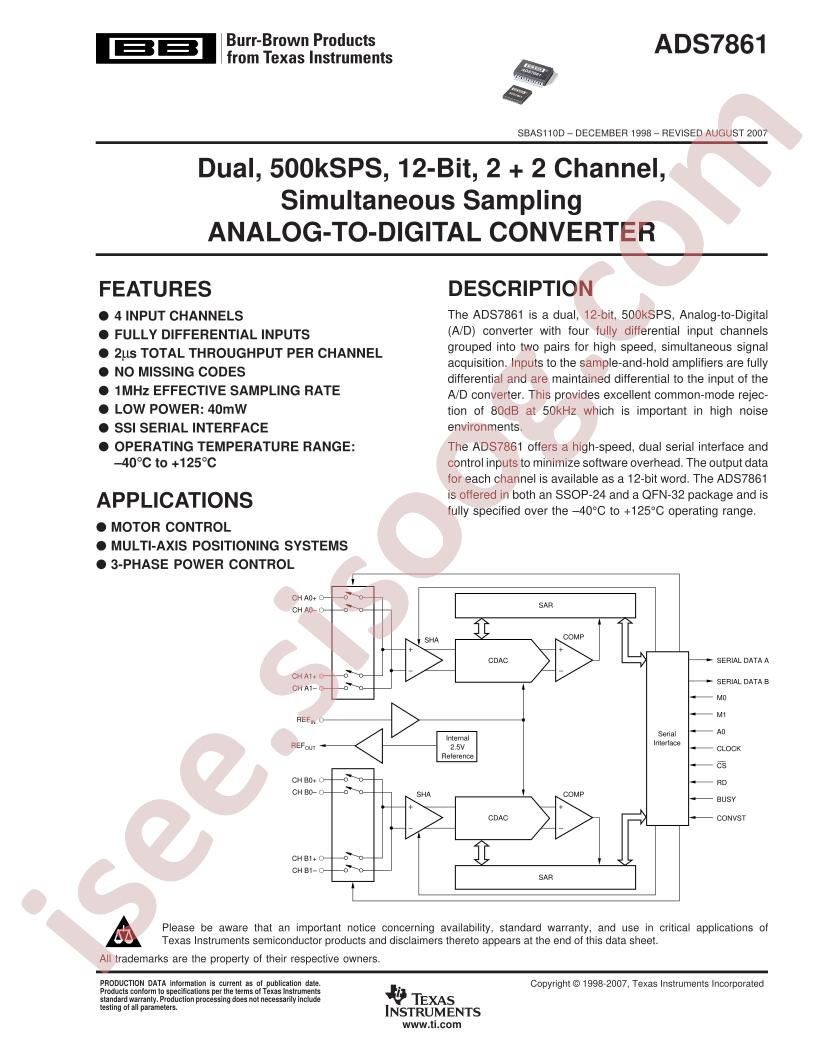

ADS7861 Datasheet

مشخصات

  • Configuration: MUX-S/H-ADC
  • Voltage - Supply, Analog: 5V
  • Base Part Number: ADS7861
  • Operating Temperature: -40°C ~ 125°C
  • Voltage - Supply, Digital: 5V
  • Number of Bits: 12
  • Series: -
  • Package / Case: 24-SSOP (0.154", 3.90mm Width)
  • Packaging: Tape & Reel (TR)
  • Supplier Device Package: 24-SSOP/QSOP
  • Number of Inputs: 4
  • Ratio - S/H:ADC: 1:1
  • Reference Type: External, Internal
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Sampling Rate (Per Second): 500k
  • Manufacturer: Texas Instruments
  • Number of A/D Converters: 2
  • Data Interface: SPI
  • Architecture: SAR
  • Input Type: Differential
  • Features: Selectable Address, Simultaneous Sampling
  • detail: 12 Bit Analog to Digital Converter 4 Input 2 SAR 24-SSOP/QSOP
