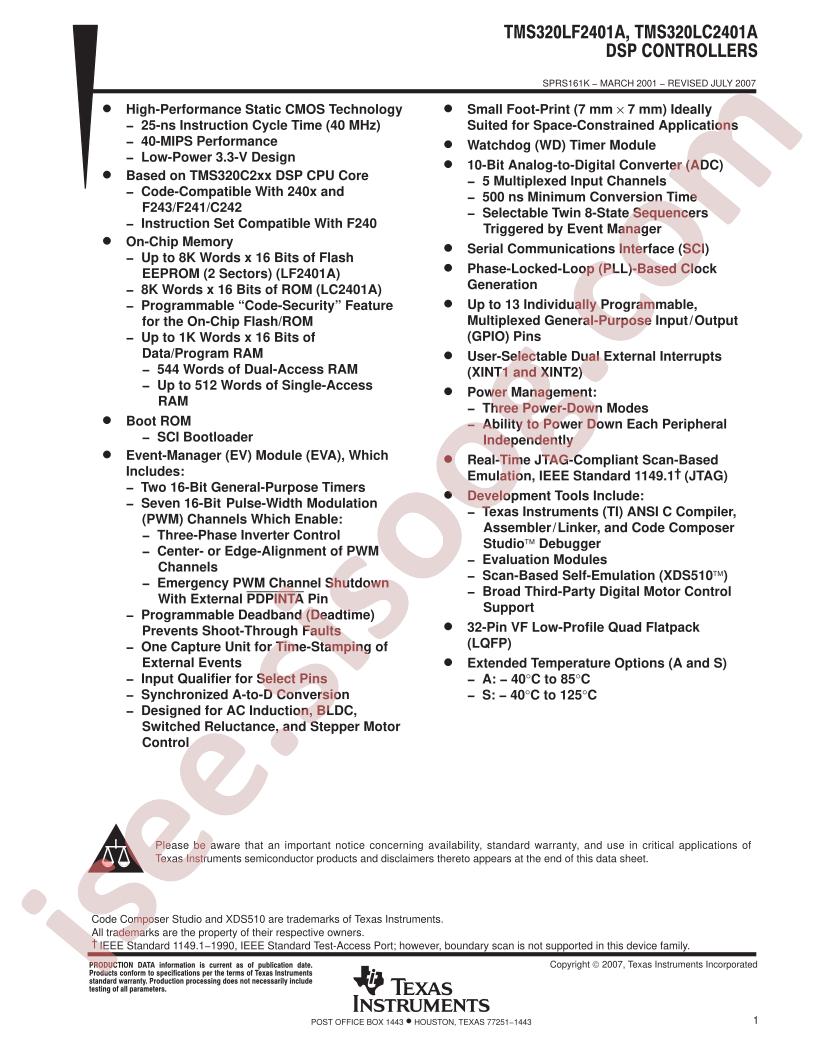

TMS320L(C,F)2401A Datasheet دیتاشیت

TMS320L(C,F)2401A Datasheet

مشخصات دیتاشیت

نام دیتاشیت TMS320L(C,F)2401A Datasheet
حجم فایل 1315.963 کیلوبایت
نوع فایل pdf
تعداد صفحات 88

دانلود دیتاشیت TMS320L(C,F)2401A Datasheet

دانلود دیتاشیت

سایر مستندات

TMS320L(C,F)2401A Errata 8 pages

TMS320LF2401AVFA 88 pages

مشخصات فنی

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: 8KB
  • CPU Core: Other series
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 2KB
  • Watchdog: Yes
  • ADC (Bit): 10bit
  • DAC (Bit): -
  • Datasheet: Texas Instruments TMS320LF2401AVFAR
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: -
  • GPIO Ports Number: 13
  • Low-Voltage Detect: -
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: WDT;PWM
  • Program Memory Type: FLASH
  • Direct Memory Access: -
  • Program Storage Size: 8KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: -
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+85°C
  • Secure Digital Input and Output: -
  • Package: LQFP-32(7x7)
  • Manufacturer: Texas Instruments
  • Peripherals: POR, PWM, WDT
  • Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V
  • Base Part Number: TMS320
  • Speed: 40MHz
  • Package / Case: 32-LQFP
  • EEPROM Size: -
  • Supplier Device Package: 32-LQFP (7x7)
  • Series: C2000™ C24x 16-Bit
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Number of I/O: 13
  • Oscillator Type: Internal
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Core Size: 16-Bit
  • Connectivity: SCI
  • Program Memory Size: 16KB (8K x 16)
  • Core Processor: C2xx DSP
  • Packaging: Tray
  • Data Converters: A/D 5x10b
  • detail: C2xx DSP C2000™ C24x 16-Bit Microcontroller IC 16-Bit 40MHz 16KB (8K x 16) FLASH 32-LQFP (7x7)
