دیتاشیت LP3856ET-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP3856-ADJ |
|---|---|
| حجم فایل | 2129.571 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت LP3856-ADJ |

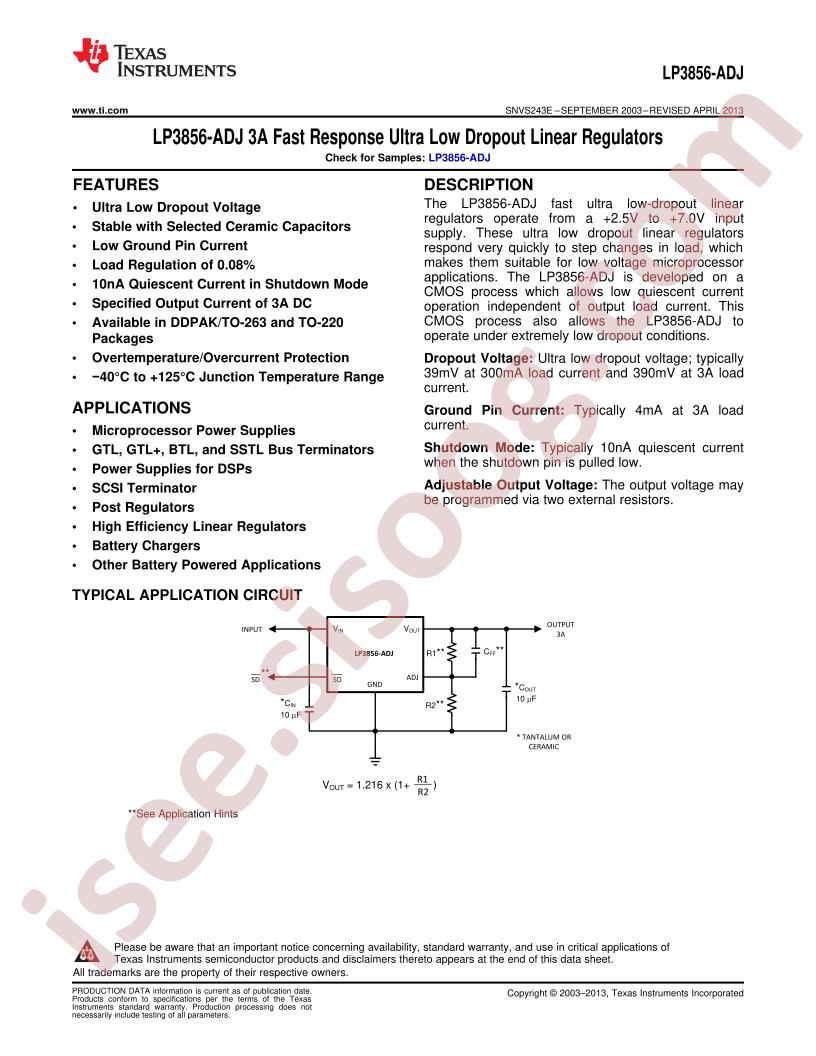

LP3856-ADJ Datasheet |
|---|
مشخصات
- RoHS: true
- Feature: Overcurrent Protection;Thermal Protection
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP3856ET-ADJ/NOPB
- Output Type: Adjustable
- Output Current: 3A
- Output Voltage: 1.23V~6.5V
- Dropout Voltage: 0.6V@(3A)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 7V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 4mA
- Power Supply Rejection Ratio (PSRR): 73dB@(120Hz)
- Package: TO-220-5
- Manufacturer: Texas Instruments
- Control Features: Enable
- Base Part Number: LP3856
- Package / Case: TO-220-5 Formed Leads
- Current - Supply (Max): 10mA
- Part Status: Obsolete
- Current - Output: 3A
- PSRR: 73dB ~ 57dB (120Hz)
- Series: -
- Voltage - Output (Min/Fixed): 1.23V
- Mounting Type: Through Hole
- Number of Regulators: 1
- Current - Quiescent (Iq): 4mA
- Output Configuration: Positive
- Voltage Dropout (Max): 0.6V @ 3A
- Supplier Device Package: TO-220-5
- Protection Features: Over Current, Over Temperature, Short Circuit
- Voltage - Input (Max): 7V
- Packaging: Tube
- Voltage - Output (Max): 6.5V
- detail: Linear Voltage Regulator IC 1 Output 3A TO-220-5
