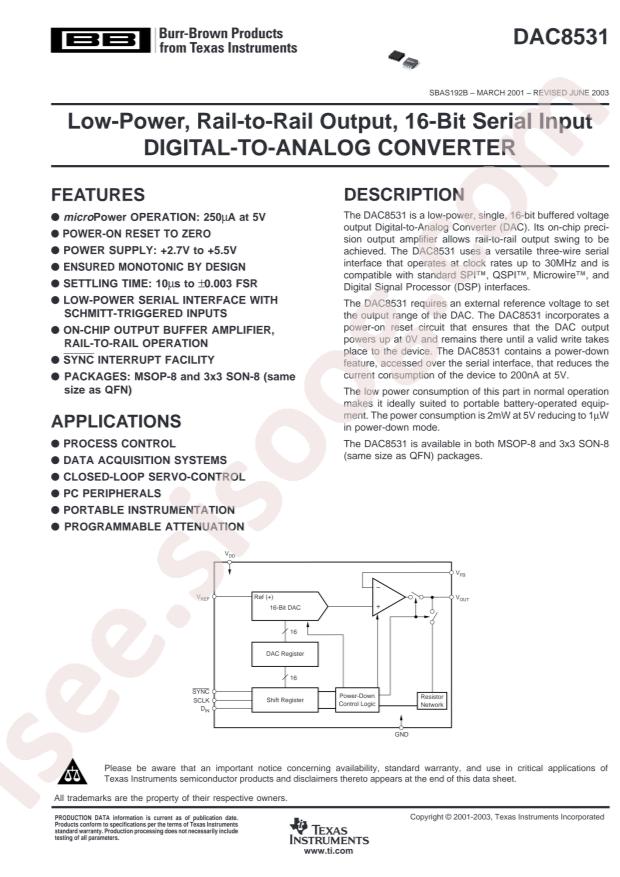

DAC8531IDRBT Datasheet
Datasheet specifications
|
Datasheet's name
|
DAC8531IDRBT
|
|
File size
|
92.442
KB
|
|
File type
|
pdf
|
|
Number of pages
|
28
|
Technical specifications
-
RoHS:
true
-
Category:
ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
-
Datasheet:
Texas Instruments DAC8531IDRBT
-
Interface:
SPI;DSP
-
Resolution:
16Bit
-
Output Type:
Voltage-缓冲
-
Settling Time:
10us
-
Supply Voltage:
2.7V~5.5V
-
Integral nonlinearity:
±1LSB
-
Operating Temperature:
-40°C~+105°C
-
Package:
SON-8-EP(3x3)
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Voltage - Supply, Digital:
2.7V ~ 5.5V
-
Voltage - Supply, Analog:
2.7V ~ 5.5V
-
INL/DNL (LSB):
-, ±1 (Max)
-

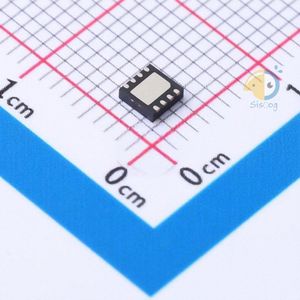

Supplier Device Package:
8-SON-EP (3x3)
-
Package / Case:
8-VDFN Exposed Pad
-
Number of Bits:
16
-
Differential Output:
No
-
Part Status:
Active
-
Reference Type:
External
-
Mounting Type:
Surface Mount
-
Architecture:
String DAC
-
Number of D/A Converters:
1
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
DAC8531
-
Data Interface:
SPI, DSP
-
detail:
16 Bit Digital to Analog Converter 1 8-SON-EP (3x3)
