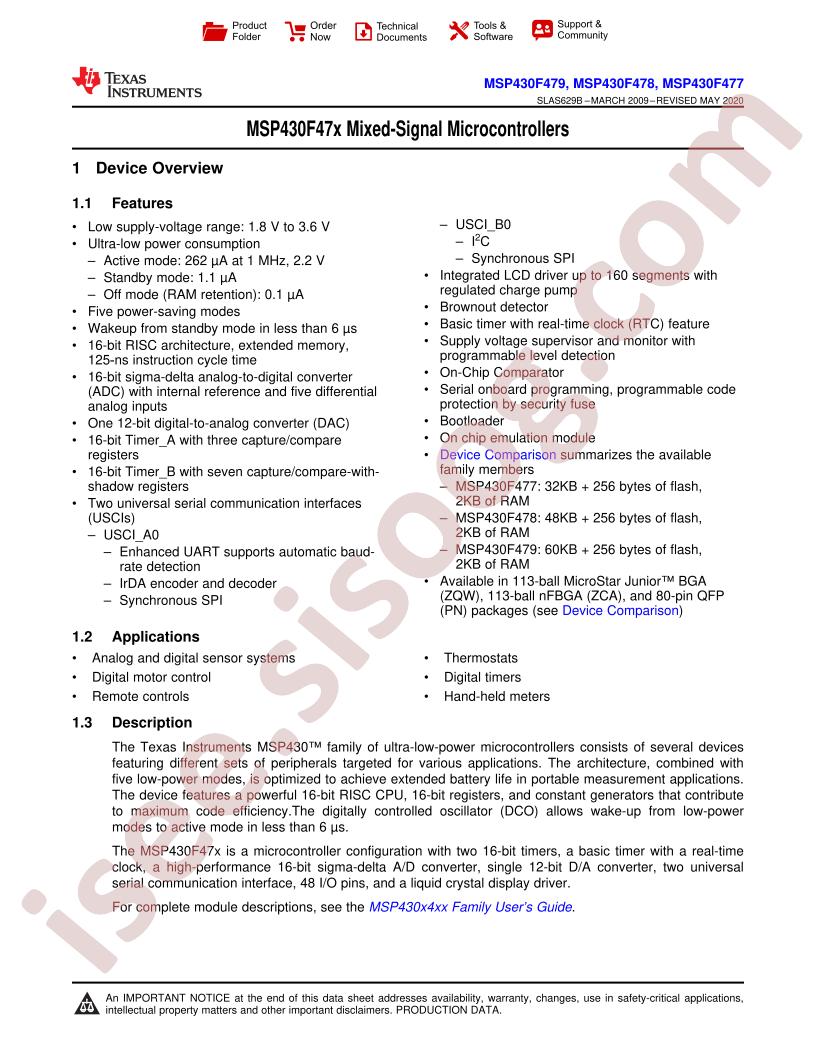

MSP430F47x Datasheet دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت MSP430F47x Datasheet	دانلود دیتاشیت

RoHS: true
CPU Core: MSP430
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
Watchdog: Yes
ADC (Bit): 16bit
DAC (Bit): 12bit
Datasheet: Texas Instruments MSP430F478IPNR
LCD Module: Yes
CPU Maximum Speed: 8MHz
GPIO Ports Number: 48
Internal Oscillator: Yes
Program Storage Size: 48KB
Operating Voltage Range: 1.8V~3.6V
Infrared Data Association: Yes
Operating Temperature Range: -40°C~+85°C
Package: LQFP-80(12x12)
Manufacturer: Texas Instruments
Peripherals: Brown-out Detect/Reset, LCD, PWM, WDT
Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
Base Part Number: 430F478
Speed: 8MHz
Package / Case: 80-LQFP
Program Memory Type: FLASH
EEPROM Size: -
Supplier Device Package: 80-LQFP (12x12)
Series: MSP430x4xx
Operating Temperature: -40°C ~ 85°C (TA)
Number of I/O: 48
Oscillator Type: Internal
RAM Size: 2K x 8
Part Status: Active
Mounting Type: Surface Mount
Core Size: 16-Bit
Connectivity: I²C, IrDA, LINbus, SCI, SPI, UART/USART
Program Memory Size: 48KB (48K x 8 + 256B)
Core Processor: MSP430
Packaging: Cut Tape (CT)
Data Converters: A/D 5x16b; D/A 1x12b
detail: MSP430 MSP430x4xx Microcontroller IC 16-Bit 8MHz 48KB (48K x 8 + 256B) FLASH 80-LQFP (12x12)
