UCD9222WRGZREP دیتاشیت

مشخصات دیتاشیت

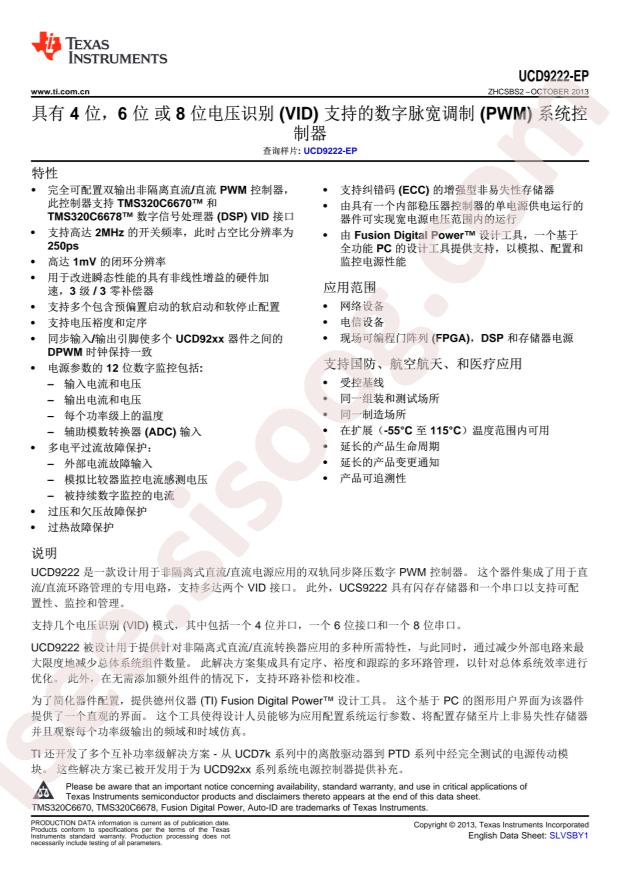

مشاهده دیتاشیت UCD9222WRGZREP	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Step-down
Datasheet: Texas Instruments UCD9222WRGZREP
Duty Cycle: 100%
Supply Voltage: 3V~3.6V
Switching Frequency: 15.26kHz~2MHz
Operating Temperature: -55°C~+115°C@(TJ)
Package: QFN-48-EP(7x7)
Manufacturer: Texas Instruments
Number of Outputs: 2
Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V
Base Part Number: UCD9222
Package / Case: 48-VFQFN Exposed Pad
Output Configuration: Positive
Series: -
Supplier Device Package: 48-VQFN (7x7)
Frequency - Switching: 15.26kHz ~ 2MHz
Part Status: Discontinued at Digi-Key
Mounting Type: Surface Mount
Control Features: Enable, Power Good, Reset, Tracking
Clock Sync: Yes
Serial Interfaces: I²C, PMBus, SMBus
Function: Step-Down
Duty Cycle (Max): 100%
Packaging: Cut Tape (CT)
Synchronous Rectifier: No
Output Type: PWM Signal
Output Phases: 2
detail: Buck Regulator Positive Output Step-Down I²C, PMBus, SMBus DC-DC Controller IC 48-VQFN (7x7)
