TLC5904PZP دیتاشیت

مشخصات دیتاشیت

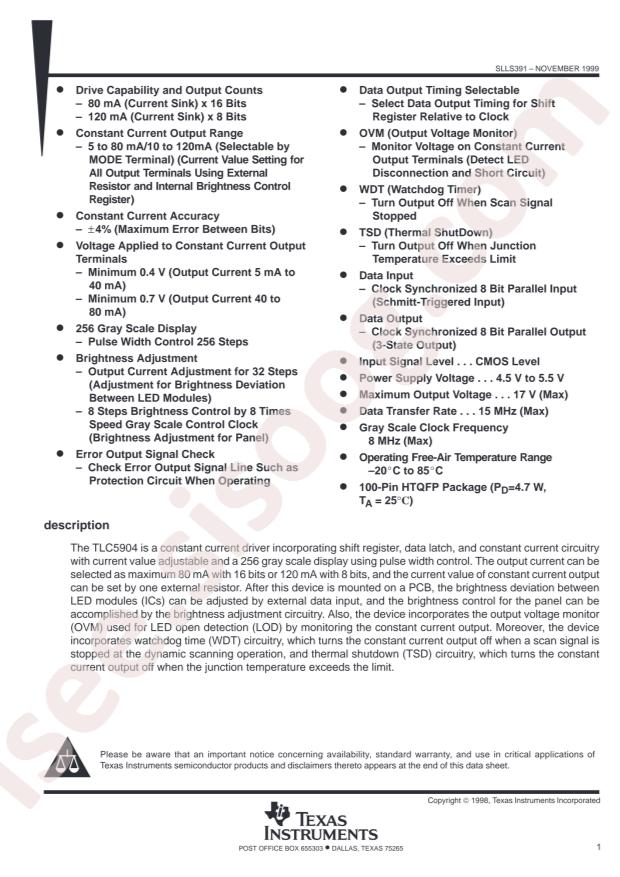

مشاهده دیتاشیت TLC5904PZP	دانلود دیتاشیت

TLC5904 28 pages

RoHS: true
Type: Linear
Category: Nixie Tube Driver/LED Driver/LED Drivers
Channels: 16
Topology: Shift Register
Datasheet: Texas Instruments TLC5904PZP
Input Voltage: 4.5V~5.5V
Output Current: 80mA;120mA
Output Voltage: 17V
Switch Frequency: 15MHz
Operating temperature: -20°C~+85°C
Package: HTQFP-100(14x14)
Manufacturer: Texas Instruments
Series: -
Package / Case: 100-TQFP Exposed Pad
Frequency: 15MHz
Number of Outputs: 16
Part Status: Active
Mounting Type: Surface Mount
Internal Switch(s): Yes
Applications: -
Voltage - Supply (Min): 4.5V
Current - Output / Channel: 80mA, 120mA
Voltage - Output: 17V
Packaging: Tray
Base Part Number: TLC590
Supplier Device Package: 100-HTQFP (14x14)
Voltage - Supply (Max): 5.5V
Dimming: -
detail: LED Driver IC 16 Output Linear Shift Register Dimming 80mA, 120mA 100-HTQFP (14x14)
