دیتاشیت UCC383T-ADJ

UCC283-x,383-x

مشخصات دیتاشیت

نام دیتاشیت UCC283-x,383-x
حجم فایل 1044.476 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

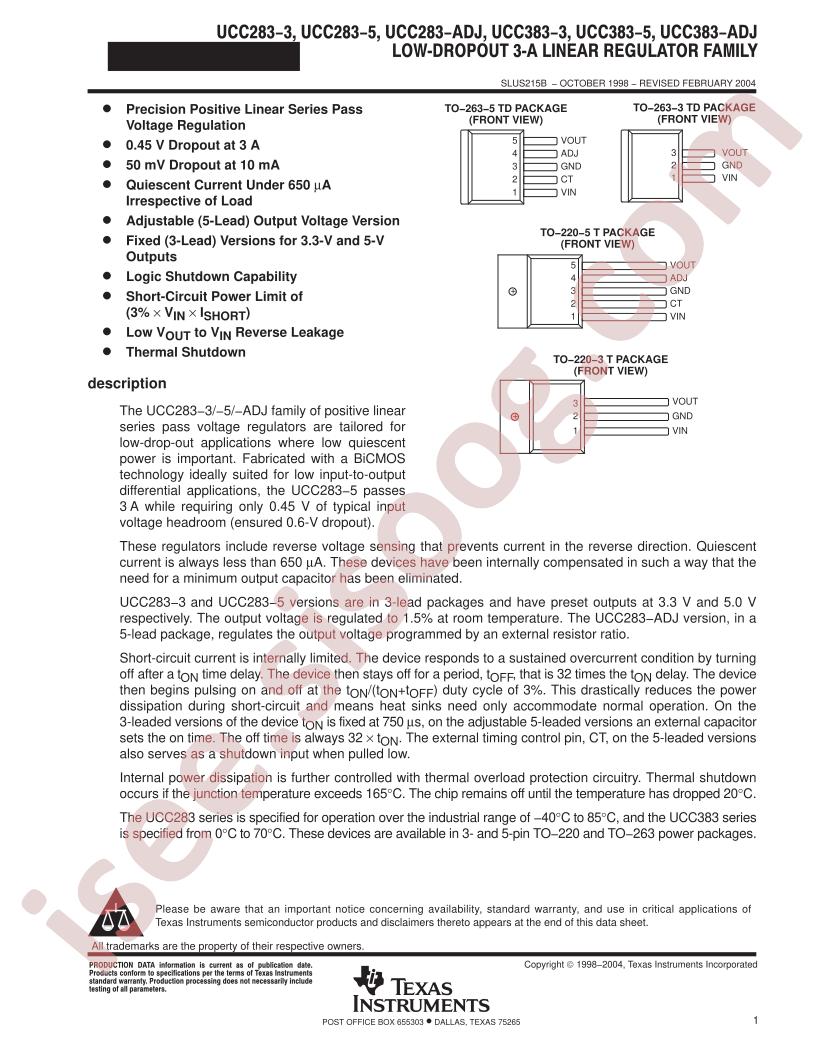

دانلود دیتاشیت UCC283-x,383-x

UCC283-x,383-x Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments UCC383T-ADJ
  • Output Type: Adjustable
  • Output Current: 3A
  • Output Voltage: 1.22V~8.5V
  • Dropout Voltage: 6V@(3A)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 9V
  • Operating Temperature: 0°C~+70°C
  • Quiescent Current (Ground Current): 650uA
  • Package: TO-220-5
  • Manufacturer: Texas Instruments
  • Series: -
  • Voltage Dropout (Max): 6V @ 3A
  • Package / Case: TO-220-5
  • Base Part Number: UCC383
  • Supplier Device Package: TO-220-5
  • Current - Output: 3A
  • Current - Quiescent (Iq): 650µA
  • Part Status: Active
  • Voltage - Input (Max): 9V
  • Mounting Type: Through Hole
  • Control Features: -
  • Protection Features: Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
  • Voltage - Output (Min/Fixed): 1.22V
  • PSRR: -
  • Voltage - Output (Max): 8.5V
  • Packaging: Tube
  • Output Configuration: Positive
  • Number of Regulators: 1
  • detail: Linear Voltage Regulator IC 1 Output 3A TO-220-5
