ADS8555 دیتاشیت

ADS8555

مشخصات دیتاشیت

نام دیتاشیت ADS8555
حجم فایل 1428.163 کیلوبایت
نوع فایل pdf
تعداد صفحات 45

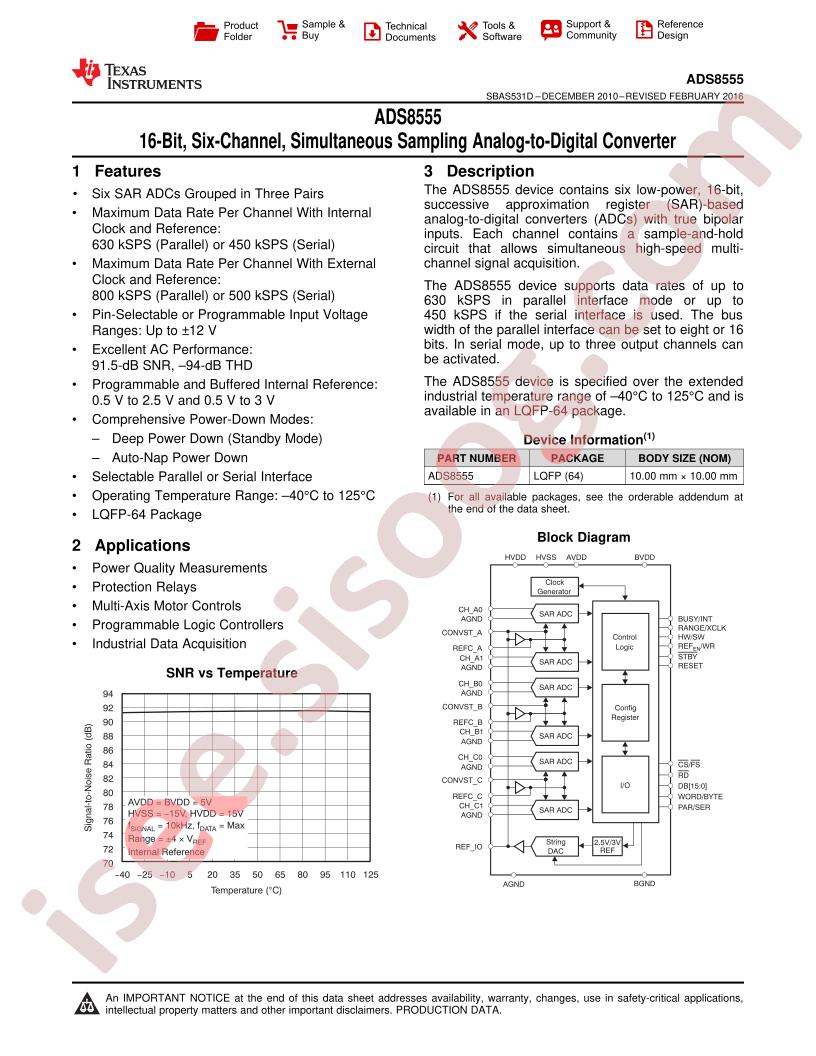

مشاهده دیتاشیت ADS8555

دانلود دیتاشیت

سایر مستندات

ADS8555SPMR 46 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS8555SPMR
  • Interface: SPI;Parallel
  • resolution: 16
  • Supply Voltage: 5V
  • number of channels: 6
  • sampling frequency: 630kHz
  • Operating Temperature: -40°C~+125°C
  • Package: LQFP-64(10x10)
  • Manufacturer: Texas Instruments
  • Configuration: S/H-ADC
  • Voltage - Supply, Analog: 5V
  • Base Part Number: ADS8555
  • Voltage - Supply, Digital: 2.7V ~ 3.6V, 5V
  • Number of Bits: 16
  • Series: -
  • Package / Case: 64-LQFP
  • Packaging: Tray
  • Supplier Device Package: 64-LQFP (10x10)
  • Number of Inputs: 6
  • Ratio - S/H:ADC: 1:1
  • Reference Type: External, Internal
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Sampling Rate (Per Second): 630k
  • Number of A/D Converters: 1
  • Data Interface: SPI, Parallel
  • Architecture: SAR
  • Input Type: Single Ended
  • Features: Simultaneous Sampling
  • detail: 16 Bit Analog to Digital Converter 6 Input 1 SAR 64-LQFP (10x10)
