ADS8586S Datasheet دیتاشیت

ADS8586S Datasheet

مشخصات دیتاشیت

نام دیتاشیت ADS8586S Datasheet
حجم فایل 2163.706 کیلوبایت
نوع فایل pdf
تعداد صفحات 61

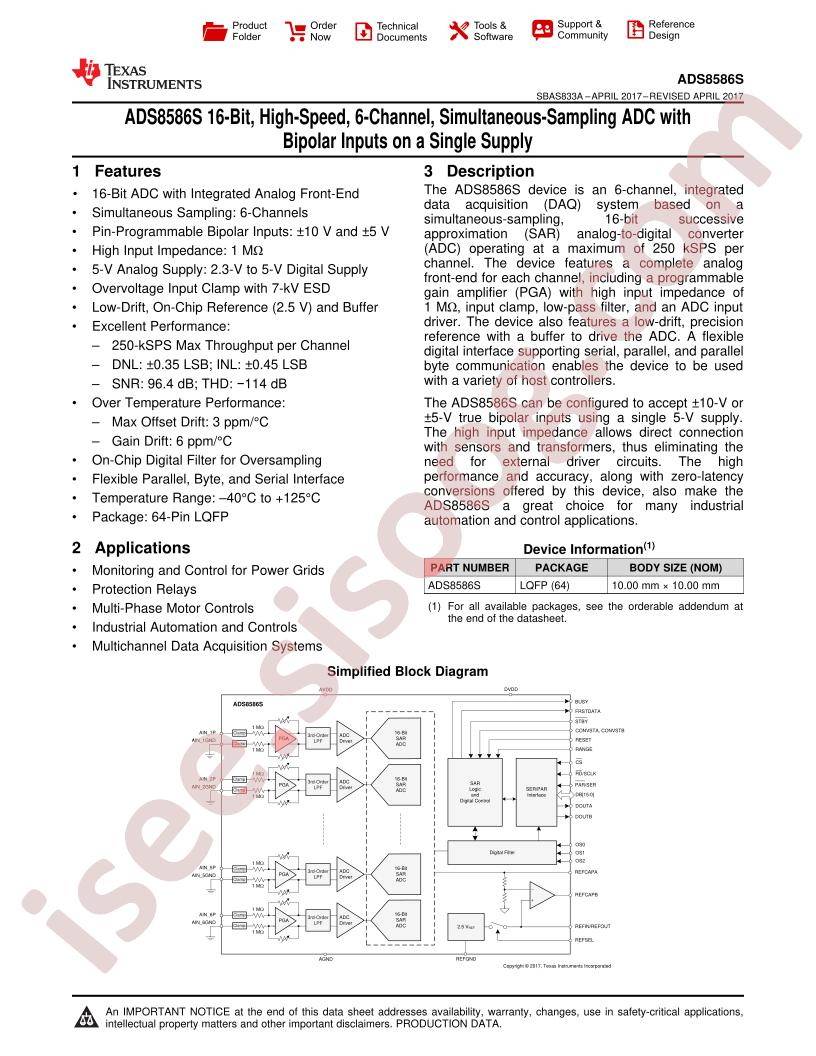

مشاهده دیتاشیت ADS8586S Datasheet

دانلود دیتاشیت

سایر مستندات

ADS8586SIPM 63 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS8586SIPMR
  • Interface: Parallel;serial
  • resolution: 16Bit
  • Supply Voltage: 4.75V~5.25V
  • number of channels: 6
  • sampling frequency: 250kHz
  • Operating Temperature: -40°C~+125°C
  • Package: LQFP-64(10x10)
  • Manufacturer: Texas Instruments
  • Configuration: PGA-ADC
  • Voltage - Supply, Analog: 4.75V ~ 5.25V
  • Base Part Number: ADS8586
  • Voltage - Supply, Digital: 2.3V ~ 5.25V
  • Number of Bits: 16
  • Series: -
  • Package / Case: 64-LQFP
  • Packaging: Digi-Reel®
  • Supplier Device Package: 64-LQFP (10x10)
  • Number of Inputs: 6
  • Ratio - S/H:ADC: 0:1
  • Reference Type: External, Internal
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Sampling Rate (Per Second): 250k
  • Number of A/D Converters: 6
  • Data Interface: Parallel, Serial
  • Architecture: SAR
  • Input Type: Single Ended
  • Features: Simultaneous Sampling
  • detail: 16 Bit Analog to Digital Converter 6 Input 6 SAR 64-LQFP (10x10)
