ADS8698IDBTR دیتاشیت

ADS8698IDBTR

مشخصات دیتاشیت

نام دیتاشیت ADS8698IDBTR
حجم فایل 100.859 کیلوبایت
نوع فایل pdf
تعداد صفحات 77

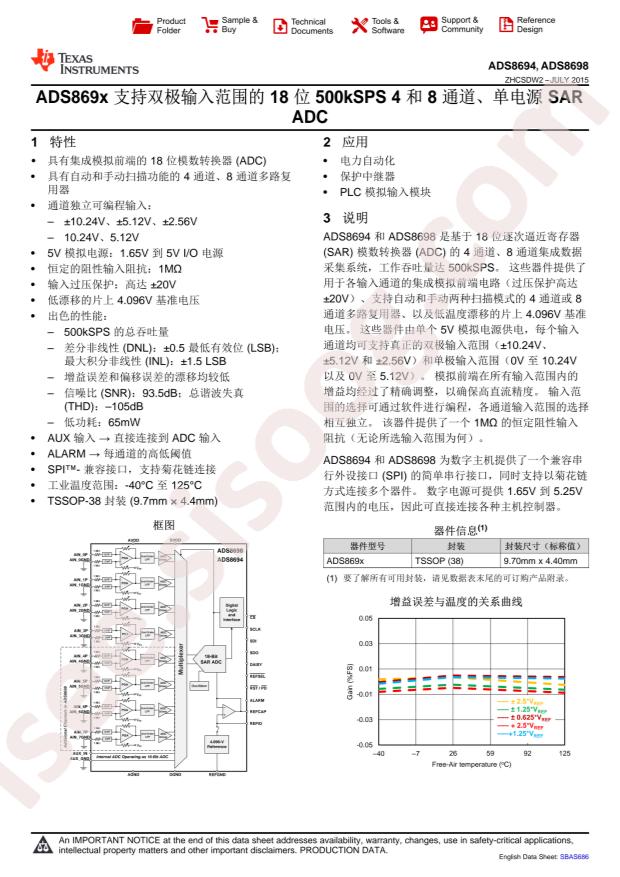

مشاهده دیتاشیت ADS8698IDBTR

دانلود دیتاشیت

سایر مستندات

ADS8694, ADS8698 Datasheet 78 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS8698IDBTR
  • Package: TSSOP-38-4.4mm
  • Manufacturer: Texas Instruments
  • Configuration: PGA-MUX-S/H-ADC
  • Voltage - Supply, Analog: 5V
  • Base Part Number: ADS869
  • Operating Temperature: -40°C ~ 125°C
  • Voltage - Supply, Digital: 1.65V ~ 5.25V
  • Number of Bits: 18
  • Series: -
  • Package / Case: 38-TFSOP (0.173", 4.40mm Width)
  • Packaging: Tube
  • Supplier Device Package: 38-TSSOP
  • Number of Inputs: 8
  • Ratio - S/H:ADC: 1:1
  • Reference Type: External, Internal
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Sampling Rate (Per Second): 500k
  • Number of A/D Converters: 1
  • Data Interface: SPI
  • Architecture: SAR
  • Input Type: Single Ended
  • Features: -
  • detail: 18 Bit Analog to Digital Converter 8 Input 1 SAR 38-TSSOP
