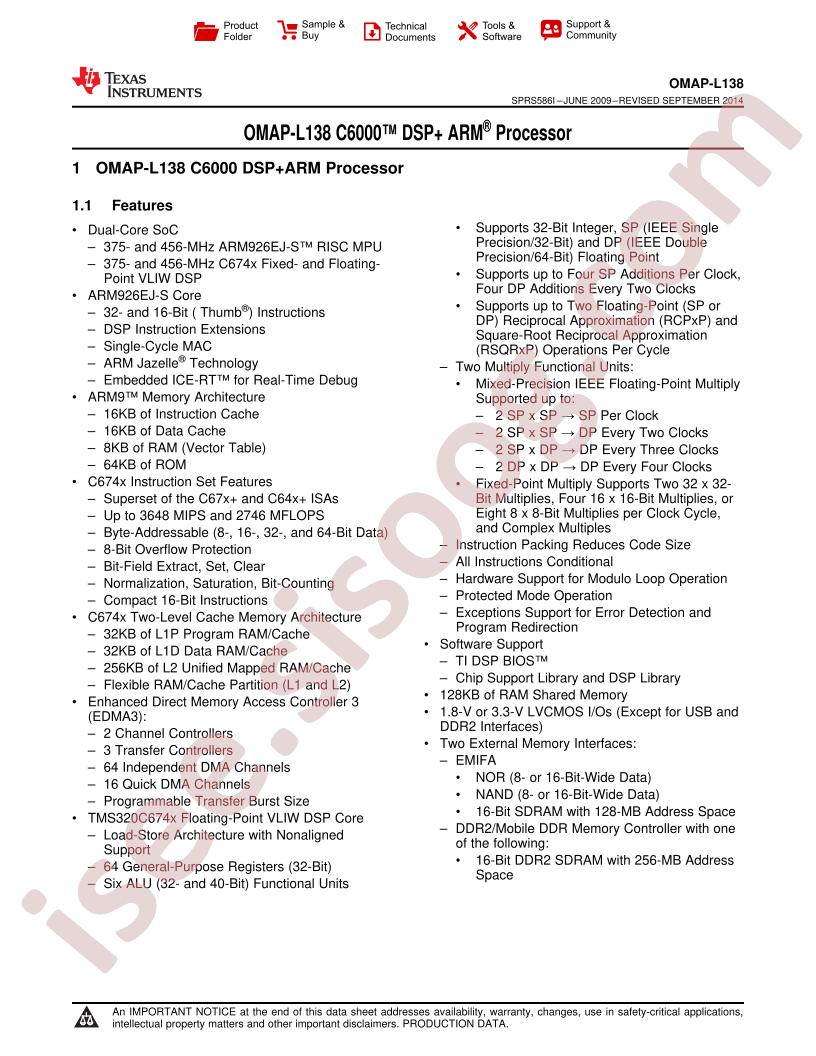

OMAPL138EZCEA3R دیتاشیت

OMAPL138EZCEA3R

مشخصات دیتاشیت

نام دیتاشیت OMAPL138EZCEA3R
حجم فایل 2075.83 کیلوبایت
نوع فایل pdf
تعداد صفحات 286

دانلود دیتاشیت OMAPL138EZCEA3R

دانلود دیتاشیت

سایر مستندات

OMAP-L138 Datasheet 287 pages

OMAPL138 Errata 63 pages

OMAPL138 Tech Ref Manual 1837 pages

OMAPL138EZWT3 288 pages

مشخصات فنی

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: ARMOther series
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: -
  • Watchdog: -
  • ADC (Bit): -
  • DAC (Bit): -
  • Datasheet: Texas Instruments OMAPL138EZCEA3R
  • PWM (Bit): -
  • 8Bit Timer: -
  • LCD Module: Yes
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 375MHz
  • GPIO Ports Number: -
  • Low-Voltage Detect: -
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: -
  • Peripheral/Function: -
  • Program Memory Type: -
  • Direct Memory Access: -
  • Program Storage Size: -
  • Universal Serial Bus: Yes
  • communication protocol: -
  • Operating Voltage Range: -
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+105°C
  • Secure Digital Input and Output: -
  • Package: BGA-361
  • Manufacturer: Texas Instruments
  • Series: OMAP-L1x
  • Graphics Acceleration: No
  • Package / Case: 361-LFBGA
  • Base Part Number: OMAPL138
  • Supplier Device Package: 361-NFBGA (13x13)
  • Voltage - I/O: 1.8V, 3.3V
  • Display & Interface Controllers: LCD
  • RAM Controllers: SDRAM
  • Part Status: Active
  • Co-Processors/DSP: Signal Processing; C674x, System Control; CP15
  • Number of Cores/Bus Width: 1 Core, 32-Bit
  • Speed: 375MHz
  • Operating Temperature: -40°C ~ 105°C (TJ)
  • Core Processor: ARM926EJ-S
  • USB: USB 1.1 + PHY (1), USB 2.0 + PHY (1)
  • Additional Interfaces: HPI, I²C, McASP, McBSP, MMC/SD, SPI, UART
  • Packaging: Tape & Reel (TR)
  • SATA: SATA 3Gbps (1)
  • Ethernet: 10/100Mbps (1)
  • Security Features: Boot Security, Cryptography
  • detail: ARM926EJ-S Microprocessor IC OMAP-L1x 1 Core, 32-Bit 375MHz 361-NFBGA (13x13)
