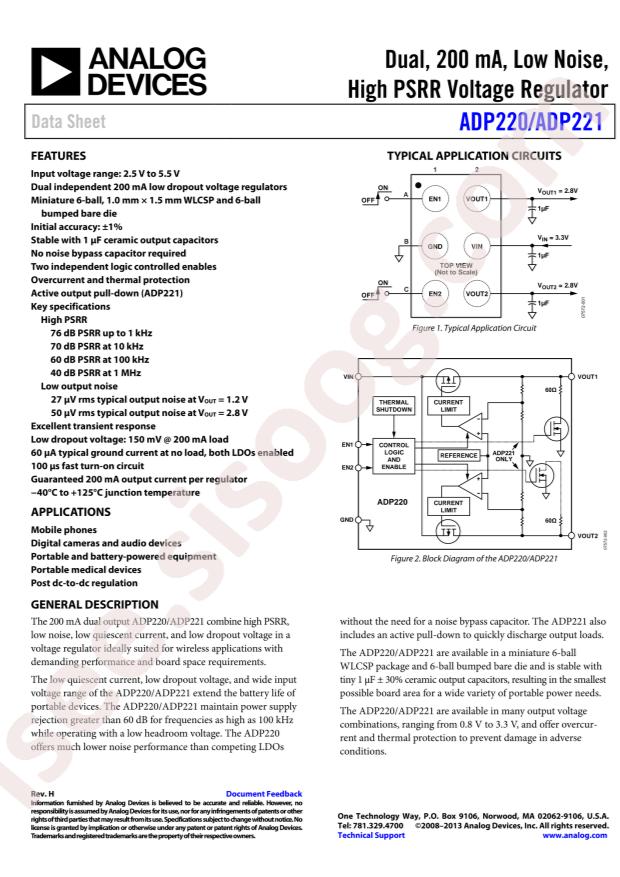

- دیتاشیت ADP220ACBZ-1812R7
دیتاشیت ADP220ACBZ-1812R7
مشخصات دیتاشیت
| نام دیتاشیت | ADP220ACBZ-1812R7 |
|---|---|
| حجم فایل | 105.99 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
ADP220ACBZ-1812R7 |
دانلود دیتاشیت |
|---|
سایر مستندات
ADP220/ADP221 20 pages
مشخصات فنی
- RoHS: true
- Feature: Overcurrent Protection;Thermal Protection
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices ADP220ACBZ-1812R7
- Output Current: 200mA
- Output Voltage: 1.2V;1.8V
- Output Polarity: positive
- Number of Outputs: 2
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 120uA
- Package: WLCSP-6
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.2V, 1.8V
- Voltage - Output (Max): -
- Voltage Dropout (Max): -
- Current - Output: 200mA
- Current - Quiescent (Iq): 120µA
- Current - Supply (Max): 220µA
- PSRR: -
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 6-WFBGA, WLCSP
- Supplier Device Package: 6-WLCSP (1.45x0.95)
- Base Part Number: ADP220
- detail: Linear Voltage Regulator IC 2 Output 200mA 6-WLCSP (1.45x0.95)
