RM44Lx20APGET Datasheet دیتاشیت

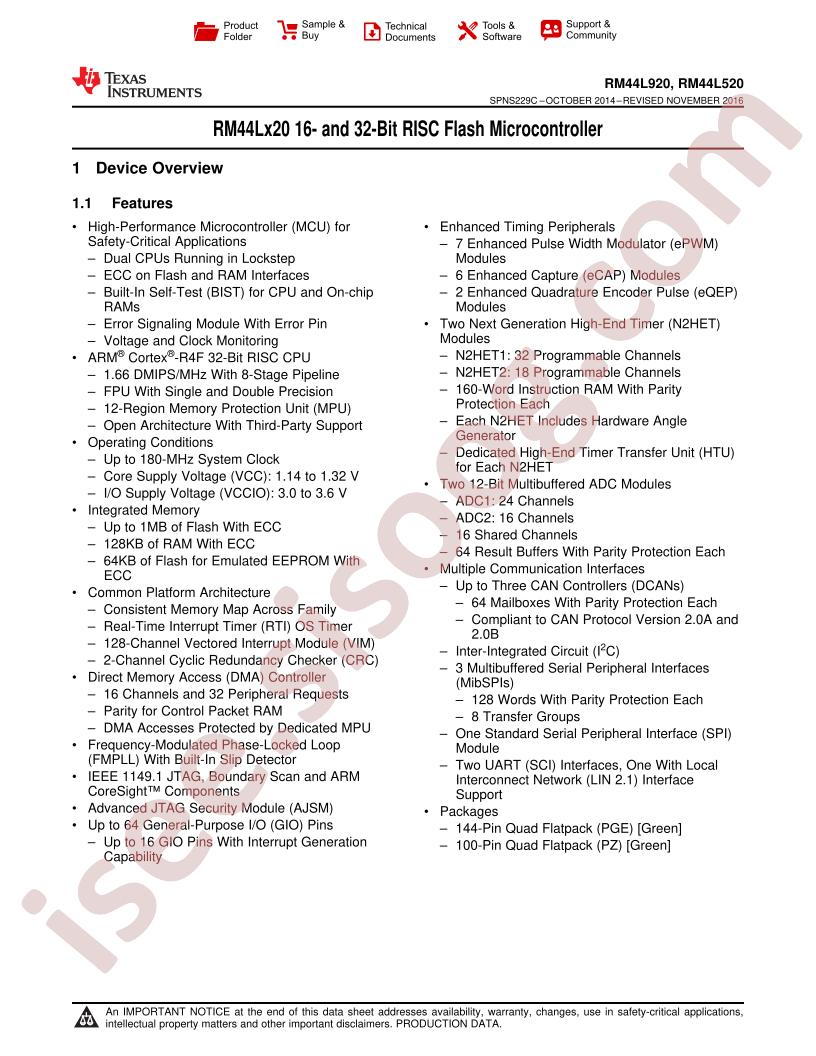

RM44Lx20APGET Datasheet

مشخصات دیتاشیت

نام دیتاشیت RM44Lx20APGET Datasheet
حجم فایل 9035.623 کیلوبایت
نوع فایل pdf
تعداد صفحات 163

دانلود دیتاشیت RM44Lx20APGET Datasheet

دانلود دیتاشیت

سایر مستندات

RM44Lx Technical Manual 1608 pages

RM44x Errata Rev A 43 pages

RM44x Errata Rev O 46 pages

RM44L520APGET 165 pages

مشخصات فنی

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: ARM-RSeries
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 128KB
  • Watchdog: Yes
  • ADC (Bit): 12bit
  • DAC (Bit): -
  • Datasheet: Texas Instruments RM44L920APZT
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 120MHz
  • GPIO Ports Number: 45
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: LIN(Local Interconnect Network);WDT;DMA;PWM
  • Program Memory Type: FLASH
  • Direct Memory Access: Yes
  • Program Storage Size: 1MB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 1.14V~3.6V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+105°C
  • Secure Digital Input and Output: -
  • Package: QFP-100(14x14)
  • Manufacturer: Texas Instruments
  • Peripherals: DMA, POR, PWM, WDT
  • Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.6V
  • Base Part Number: RM44
  • Speed: 120MHz
  • Package / Case: 100-LQFP
  • EEPROM Size: 64K x 8
  • Supplier Device Package: 100-LQFP (14x14)
  • Series: Hercules™ RM4 ARM® Cortex®-R4
  • Operating Temperature: -40°C ~ 105°C (TA)
  • Number of I/O: 45
  • Oscillator Type: External
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Core Size: 16/32-Bit
  • Connectivity: CANbus, LINbus, MibSPI, SCI, SPI, UART/USART
  • Program Memory Size: 1MB (1M x 8)
  • Core Processor: ARM® Cortex®-R4F
  • Packaging: Tray
  • Data Converters: A/D 16x12b
  • detail: ARM® Cortex®-R4F Hercules™ RM4 ARM® Cortex®-R4 Microcontroller IC 16/32-Bit 120MHz 1MB (1M x 8) FLASH 100-LQFP (14x14)
