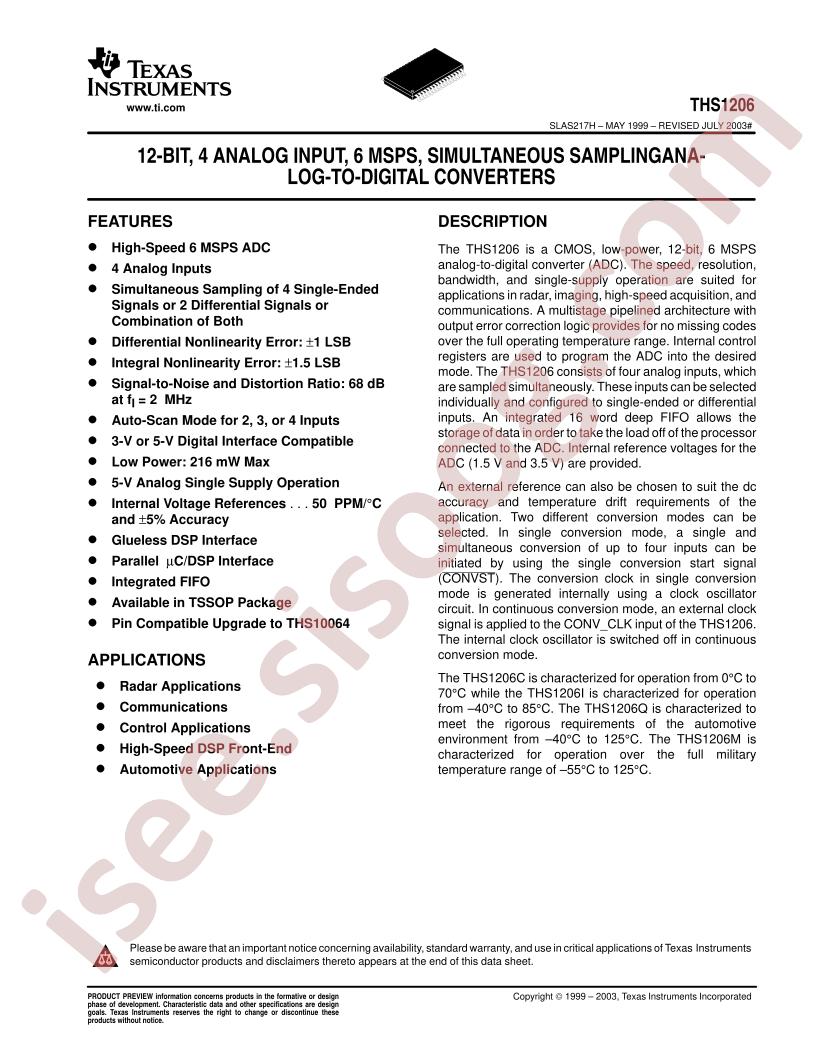

THS1206QDA دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | THS1206QDA |
|---|---|
| حجم فایل | 1102.347 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 43 |
دانلود دیتاشیت THS1206QDA |
دانلود دیتاشیت |
|---|
سایر مستندات
THS1206 43 pages
THS1206IDAR 44 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Texas Instruments THS1206QDA
- Package: TSSOP-32-6.1mm
- Manufacturer: Texas Instruments
- Configuration: S/H-MUX-ADC
- Voltage - Supply, Analog: 5V
- Base Part Number: THS120
- Operating Temperature: -40°C ~ 125°C
- Voltage - Supply, Digital: 3V ~ 5.25V
- Number of Bits: 12
- Series: -
- Package / Case: 32-TSSOP (0.240", 6.10mm Width)
- Packaging: Tube
- Supplier Device Package: 32-TSSOP
- Number of Inputs: 2, 4
- Ratio - S/H:ADC: 4:1
- Reference Type: External, Internal
- Mounting Type: Surface Mount
- Part Status: Active
- Sampling Rate (Per Second): 6M
- Number of A/D Converters: 1
- Data Interface: Parallel
- Architecture: Pipelined
- Input Type: Differential, Single Ended
- Features: Simultaneous Sampling
- detail: 12 Bit Analog to Digital Converter 2, 4 Input 1 Pipelined 32-TSSOP
