دیتاشیت ADP2138ACBZ-0.8-R7
مشخصات دیتاشیت
| نام دیتاشیت | ADP2138/39 |
|---|---|
| حجم فایل | 461.514 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت ADP2138/39 |

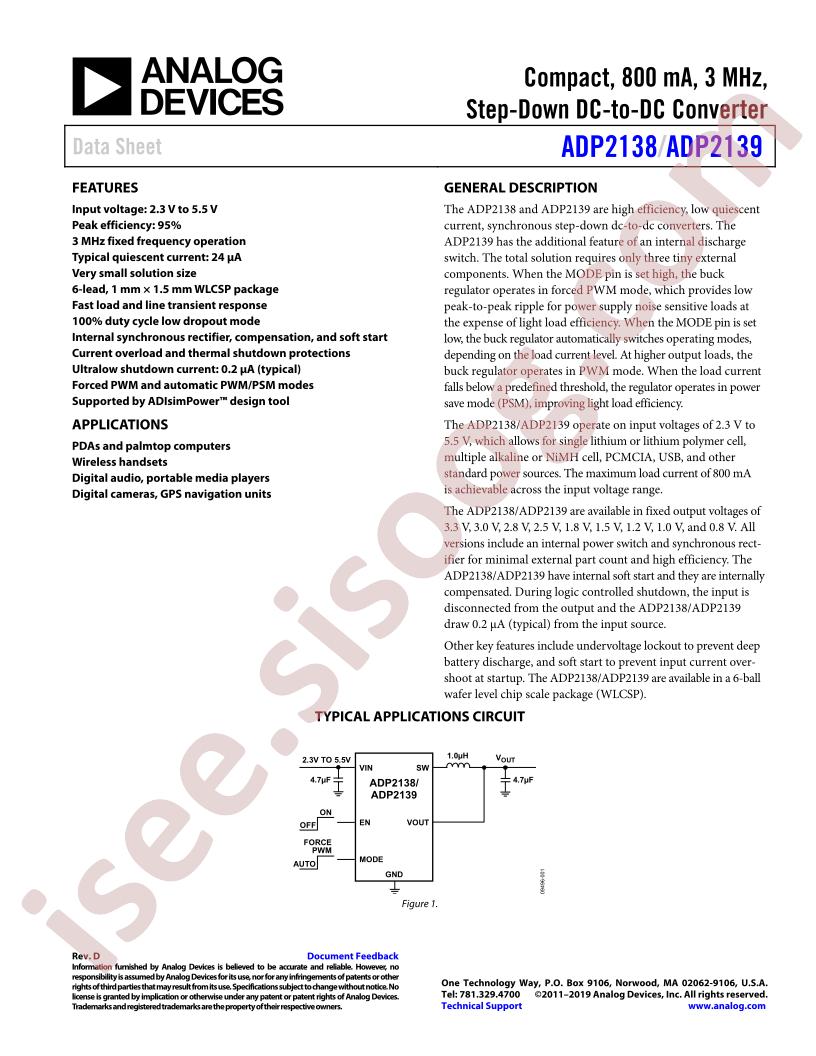

ADP2138/39 Datasheet |
|---|
مشخصات
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Fixed
- Number of Outputs: 1
- Voltage - Input (Min): 2.3V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): -
- Current - Output: 800mA
- Frequency - Switching: 3MHz
- Synchronous Rectifier: Yes
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-UFBGA, WLCSP
- Supplier Device Package: 6-WLCSP (1.03x1.50)
- Base Part Number: ADP2138
- detail: Buck Switching Regulator IC Positive Fixed 0.8V 1 Output 800mA 6-UFBGA, WLCSP
