MSP430F6459TPZR Datasheet دیتاشیت

MSP430F6459TPZR Datasheet

مشخصات دیتاشیت

نام دیتاشیت MSP430F6459TPZR Datasheet
حجم فایل 1640.021 کیلوبایت
نوع فایل pdf
تعداد صفحات 126

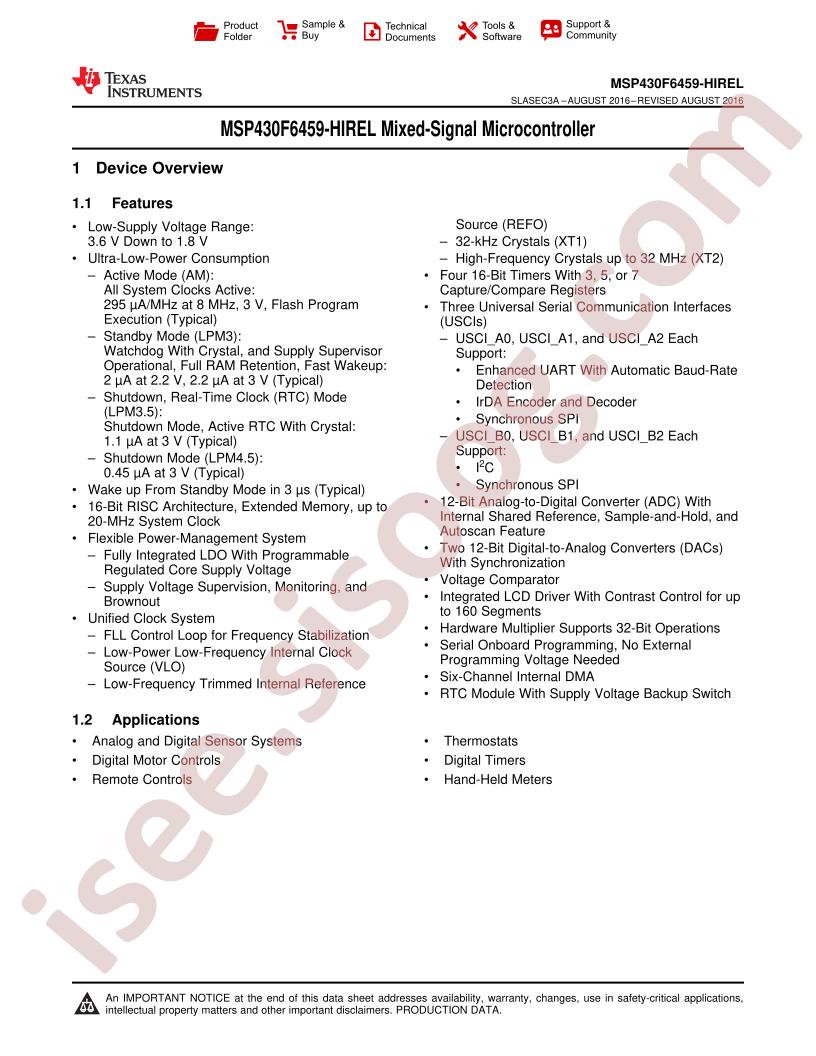

مشاهده دیتاشیت MSP430F6459TPZR Datasheet

دانلود دیتاشیت

سایر مستندات

MSP430F6459TPZR 126 pages

مشخصات فنی

  • RoHS: true
  • CPU Core: MSP430
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • ADC (Bit): 12bit
  • DAC (Bit): 12bit
  • Datasheet: Texas Instruments MSP430F6459TPZR
  • CPU Maximum Speed: 2MHz
  • GPIO Ports Number: 74
  • Direct Memory Access: Yes
  • Universal Serial Bus: -
  • Operating Voltage Range: 1.8V~3.6V
  • Operating Temperature Range: -40°C~+105°C
  • Secure Digital Input and Output: Yes
  • Package: LQFP-100(14x14)
  • Manufacturer: Texas Instruments
  • Peripherals: Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
  • Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
  • Base Part Number: 430F6459
  • Speed: 20MHz
  • Package / Case: 100-LQFP
  • Program Memory Type: FLASH
  • EEPROM Size: -
  • Supplier Device Package: 100-LQFP (14x14)
  • Series: MSP430F6xx
  • Operating Temperature: -40°C ~ 105°C (TA)
  • Number of I/O: 74
  • Oscillator Type: Internal
  • RAM Size: 66K x 8
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Core Size: 16-Bit
  • Connectivity: I²C, IrDA, SCI, SPI, UART/USART
  • Program Memory Size: 512KB (512K x 8)
  • Core Processor: CPUXV2
  • Packaging: Cut Tape (CT)
  • Data Converters: A/D 16x12b; D/A 2x12b
  • detail: CPUXV2 MSP430F6xx Microcontroller IC 16-Bit 20MHz 512KB (512K x 8) FLASH 100-LQFP (14x14)
