دیتاشیت ADA4571BRZ-RL

ADA4571

مشخصات دیتاشیت

نام دیتاشیت ADA4571
حجم فایل 476.419 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

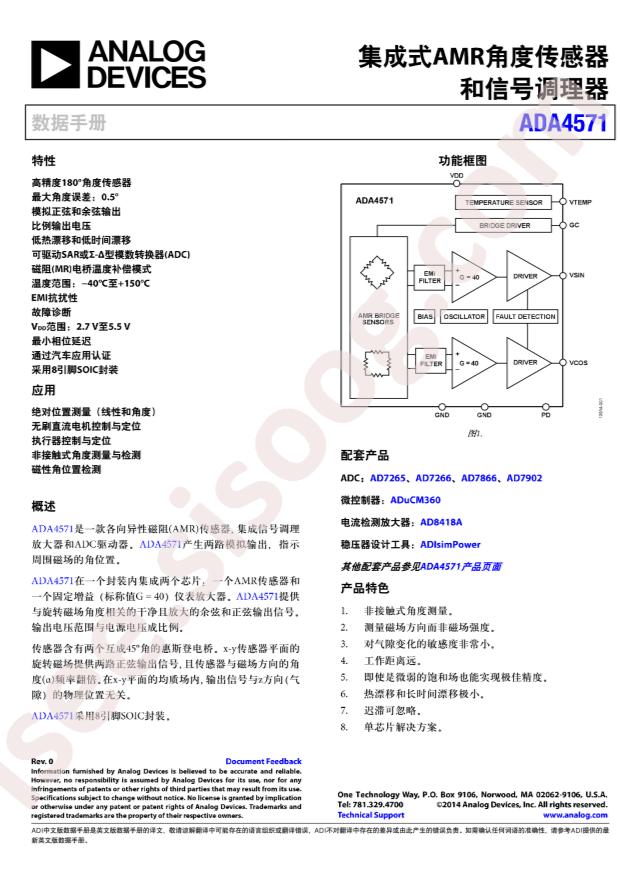

دانلود دیتاشیت ADA4571

ADA4571 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: AD
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • For Measuring: Angle
  • Technology: Hall Effect
  • Rotation Angle - Electrical, Mechanical: 180° (±90°), Continuous
  • Linear Range: -
  • Output: Analog Voltage
  • Output Signal: Cosine, Sine
  • Actuator Type: External Magnet, Not Included
  • Linearity: -
  • Resistance Tolerance: -
  • Voltage - Supply: 2.7V ~ 5.5V
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Operating Temperature: -40°C ~ 125°C
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: ADA4571
  • detail: Hall Effect Sensor Angle External Magnet, Not Included Gull Wing
