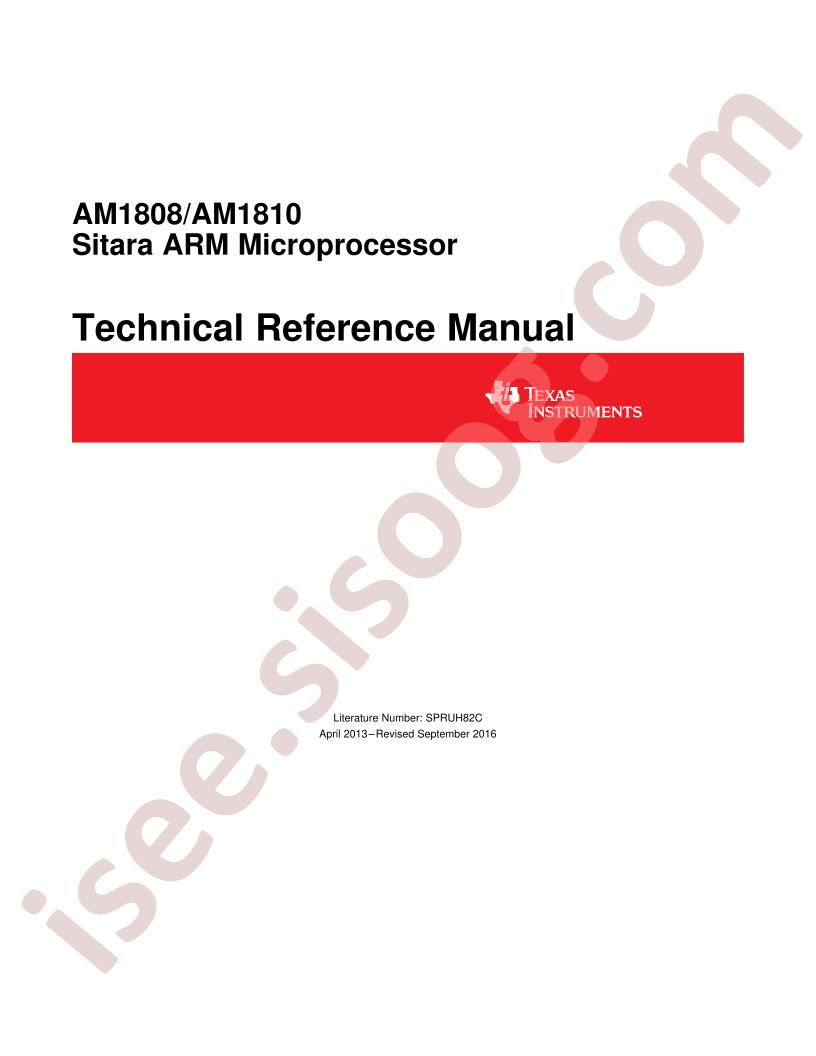

AM1808,1810 Tech Ref Manual دیتاشیت

AM1808,1810 Tech Ref Manual

مشخصات دیتاشیت

نام دیتاشیت AM1808,1810 Tech Ref Manual
حجم فایل 10393.534 کیلوبایت
نوع فایل pdf
تعداد صفحات 1820

مشاهده دیتاشیت AM1808,1810 Tech Ref Manual

دانلود دیتاشیت

سایر مستندات

AM1810 261 pages

AM1810 Errata 43 pages

AM1810EZWTA3 262 pages

مشخصات فنی

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: ARMOther series
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: -
  • Watchdog: -
  • ADC (Bit): -
  • DAC (Bit): -
  • Datasheet: Texas Instruments AM1810EZWTA3
  • PWM (Bit): -
  • 8Bit Timer: -
  • LCD Module: Yes
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 375MHz
  • GPIO Ports Number: -
  • Low-Voltage Detect: -
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: -
  • Peripheral/Function: Ethernet protocol stack
  • Program Memory Type: -
  • Direct Memory Access: -
  • Program Storage Size: -
  • Universal Serial Bus: Yes
  • communication protocol: 以太网协议
  • Operating Voltage Range: -
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+105°C
  • Secure Digital Input and Output: -
  • Package: BGA-361
  • Manufacturer: Texas Instruments
  • Series: Sitara™
  • Graphics Acceleration: No
  • Package / Case: 361-LFBGA
  • Base Part Number: AM1810
  • Supplier Device Package: 361-NFBGA (16x16)
  • Voltage - I/O: 1.8V, 3.3V
  • Display & Interface Controllers: LCD
  • RAM Controllers: LPDDR, DDR2
  • Part Status: Active
  • Co-Processors/DSP: System Control; CP15
  • Number of Cores/Bus Width: 1 Core, 32-Bit
  • Speed: 375MHz
  • Operating Temperature: -40°C ~ 105°C (TJ)
  • Core Processor: ARM926EJ-S
  • USB: USB 1.1 + PHY (1), USB 2.0 + PHY (1)
  • Additional Interfaces: I²C, McASP, McBSP, SPI, MMC/SD, UART
  • Packaging: Tray
  • SATA: SATA 3Gbps (1)
  • Ethernet: 10/100Mbps (1)
  • Security Features: -
  • detail: ARM926EJ-S Microprocessor IC Sitara™ 1 Core, 32-Bit 375MHz 361-NFBGA (16x16)
