دیتاشیت ADUM241E0BRWZ-RL

ADuM240-42D/E

مشخصات دیتاشیت

نام دیتاشیت ADuM240-42D/E
حجم فایل 477.045 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

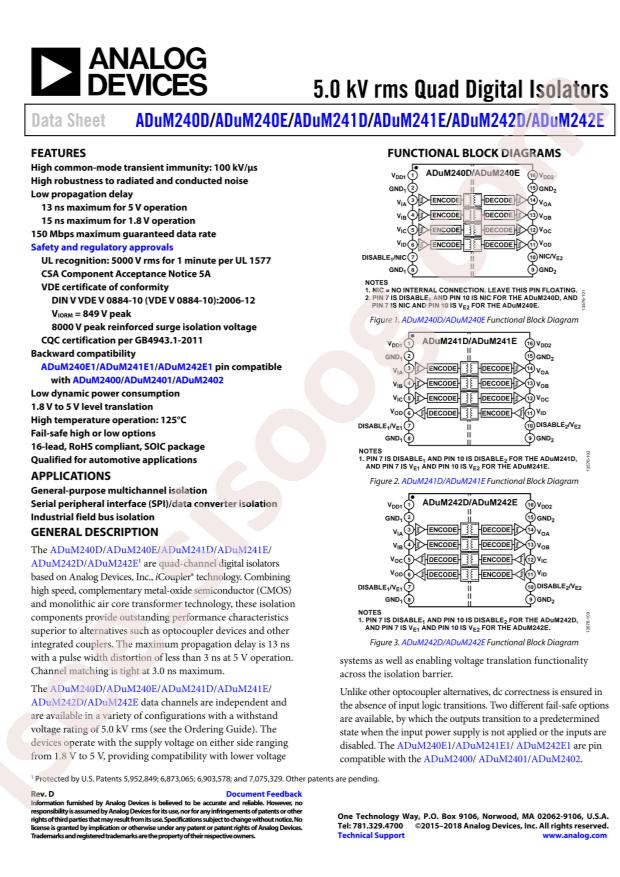

دانلود دیتاشیت ADuM240-42D/E

ADuM240-42D/E Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: iCoupler®
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Technology: Magnetic Coupling
  • Type: General Purpose
  • Isolated Power: No
  • Number of Channels: 4
  • Inputs - Side 1/Side 2: 3/1
  • Channel Type: Unidirectional
  • Voltage - Isolation: 5000Vrms
  • Common Mode Transient Immunity (Min): 75kV/µs
  • Data Rate: 150Mbps
  • Propagation Delay tpLH / tpHL (Max): 13ns, 13ns
  • Pulse Width Distortion (Max): 3ns
  • Rise / Fall Time (Typ): 2.5ns, 2.5ns
  • Voltage - Supply: 1.7V ~ 5.5V
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount

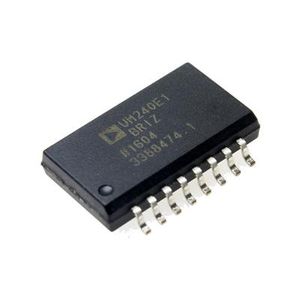

  • Package / Case: 16-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 16-SOIC
  • Base Part Number: ADUM241
  • detail: General Purpose Digital Isolator 5000Vrms 4 Channel 150Mbps 75kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
