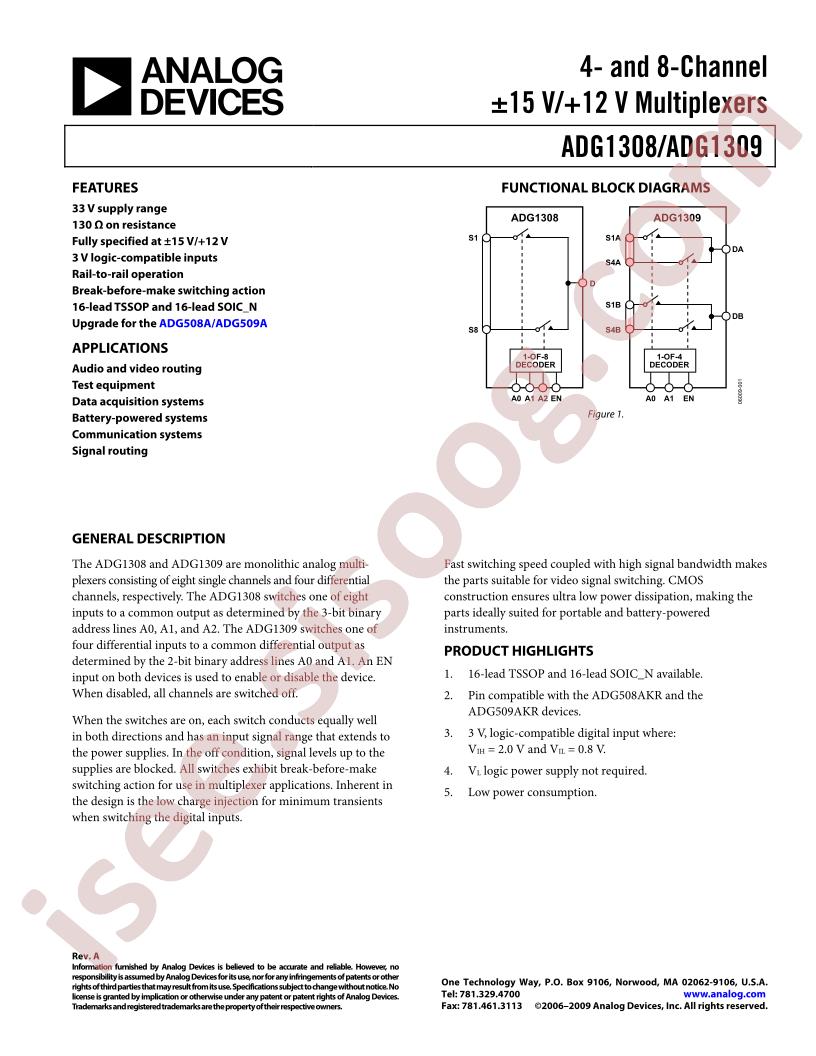

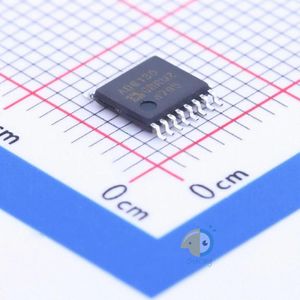

ADG1308,09 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ADG1308,09
|
|
حجم فایل
|
363.508
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Analog Devices ADG1308BRUZ-REEL7
-
Turn-on time:
100ns
-
Turn-off time:
100ns
-
Supply Voltage:
5V~16.5V
-
Number of Channels:
1
-
On-State Resistance (Max):
210Ω
-
Package:
TSSOP-16
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Switch Circuit:
-
-
Multiplexer/Demultiplexer Circuit:
8:1
-
Number of Circuits:
1
-
Channel-to-Channel Matching (ΔRon):
5Ohm
-
Voltage - Supply, Single (V+):
5V ~ 16.5V
-
Voltage - Supply, Dual (V±):
±5V ~ 16.5V
-
Switch Time (Ton, Toff) (Max):
100ns, 100ns
-
-3db Bandwidth:
500MHz
-
Charge Injection:
2pC
-
Channel Capacitance (CS(off), CD(off)):
15pF, 20pF
-
Current - Leakage (IS(off)) (Max):
1nA
-
Crosstalk:
-80dB @ 1MHz
-
Operating Temperature:
-40°C ~ 105°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
16-TSSOP (0.173", 4.40mm Width)
-
Supplier Device Package:
16-TSSOP
-
Base Part Number:
ADG1308
-
detail:
1 Circuit IC Switch 8:1 210Ohm 16-TSSOP
