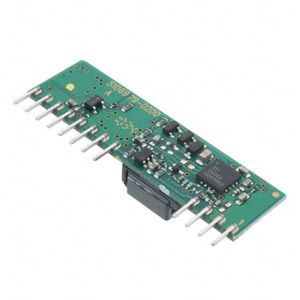

PTV05020WAH دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت PTV05020WAH	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Power Modules
Datasheet: Texas Instruments PTV05020WAH
Output Channel: 1
Output Voltage: 0.8V~3.6V
Input Voltage(DC): 4.5V~5.5V
Output Current (Max): 18A
Conversion Efficiency: 94%
Package: -
Manufacturer: Texas Instruments
Series: PTV05020W
Type: Non-Isolated PoL Module
Voltage - Input (Min): 4.5V
Voltage - Output 3: -
Applications: ITE (Commercial)
Number of Outputs: 1
Package / Case: 12-SIP Module
Voltage - Output 2: -
Part Status: Active
Voltage - Input (Max): 5.5V
Mounting Type: Through Hole
Size / Dimension: 1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm)
Voltage - Output 1: 0.8 ~ 3.6V
Base Part Number: PTV050
Operating Temperature: -40°C ~ 85°C
Efficiency: 94%
Packaging: Tray
Current - Output (Max): 18A
Features: UVLO
detail: Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 18A 4.5V - 5.5V Input
