ADP5037ACPZ-1-R7 دیتاشیت

مشخصات دیتاشیت

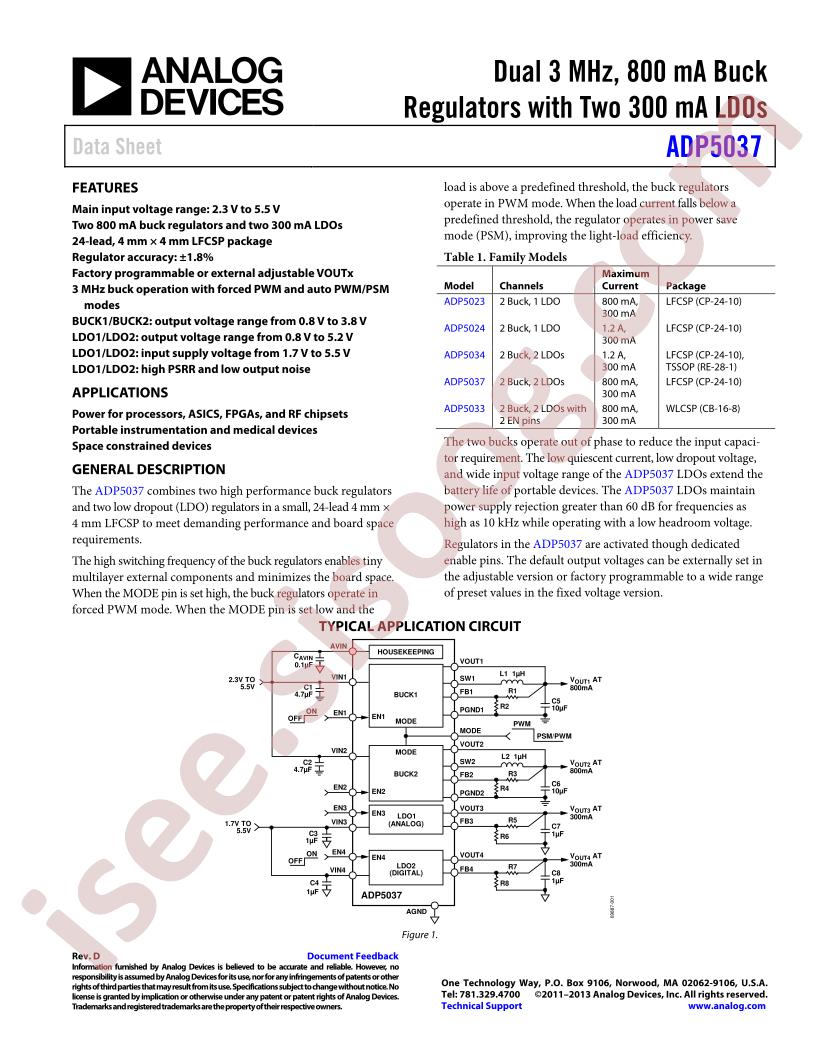

دانلود دیتاشیت ADP5037ACPZ-1-R7	دانلود دیتاشیت

ADP5037 28 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Topology: Step-down
Datasheet: Analog Devices ADP5037ACPZ-1-R7
Input Voltage: 1.7V~5.5V
Number of Outputs: 4
Switching Frequency: 3MHz
Operating Temperature: -40°C~+125°C
Package: LFCSP-24
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Discontinued at Digi-Key
Frequency - Switching: 3MHz
Voltage/Current - Output 1: 1.2V, 800mA
Voltage/Current - Output 2: 3.3V, 800mA
Voltage/Current - Output 3: 2.8V, 300mA
w/LED Driver: No
w/Supervisor: No
w/Sequencer: No
Voltage - Supply: 1.7V ~ 5.5V
Mounting Type: Surface Mount
Package / Case: 24-WFQFN Exposed Pad, CSP
Supplier Device Package: 24-LFCSP-WQ (4x4)
Base Part Number: ADP5037
detail: PMIC - Voltage Regulators - Linear + Switching 4 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (2) 3MHz 24-LFCSP-WQ (4x4)
