دیتاشیت ADP5041ACPZ-1-R7

ADP5041

مشخصات دیتاشیت

نام دیتاشیت ADP5041
حجم فایل 4222.197 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

دانلود دیتاشیت ADP5041

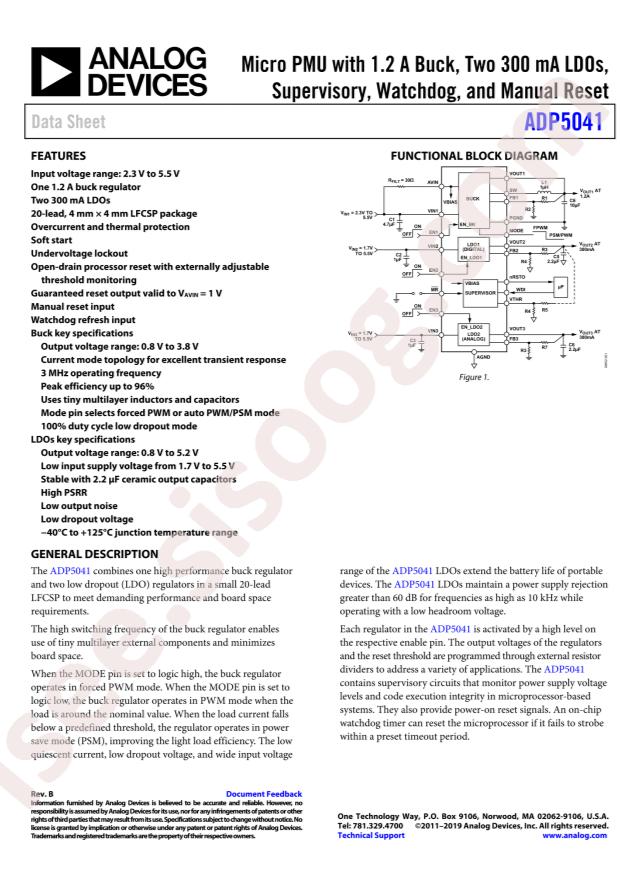

ADP5041 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Topology: Step-Down (Buck) Synchronous (1), Linear (LDO) (2)
  • Number of Outputs: 3
  • Frequency - Switching: 3MHz
  • Voltage/Current - Output 1: 0.8V ~ 3.8V, 1.2A
  • Voltage/Current - Output 2: 0.8V ~ 5.2V, 300mA
  • Voltage/Current - Output 3: 0.8V ~ 5.2V, 300mA
  • w/LED Driver: No
  • w/Supervisor: Yes
  • w/Sequencer: No
  • Voltage - Supply: 2.3V ~ 5.5V
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 20-WFQFN Exposed Pad, CSP
  • Supplier Device Package: 20-LFCSP-WQ (4x4)
  • Base Part Number: ADP5041
  • detail: PMIC - Voltage Regulators - Linear + Switching 3 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (2) 3MHz 20-LFCSP-WQ (4x4)
