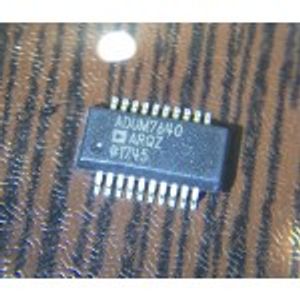

دیتاشیت ADUM7640ARQZ-RL7
مشخصات دیتاشیت
| نام دیتاشیت |
ADuM7640-43
|
| حجم فایل |
394.884
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
Manufacturer:
Analog Devices Inc.
-
Series:
iCoupler®
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
General Purpose
-
Isolated Power:
No
-
Number of Channels:
6
-
Inputs - Side 1/Side 2:
6/0
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
1000Vrms
-
Common Mode Transient Immunity (Min):
15kV/µs
-
Data Rate:
1Mbps
-
Propagation Delay tpLH / tpHL (Max):
75ns, 75ns
-
Pulse Width Distortion (Max):
25ns
-
Rise / Fall Time (Typ):
2ns, 2ns
-
Voltage - Supply:
3V ~ 5.5V
-
Operating Temperature:
-40°C ~ 105°C
-
Mounting Type:
Surface Mount
-
Package / Case:
20-SSOP (0.154", 3.90mm Width)
-
Supplier Device Package:
20-QSOP
-
Base Part Number:
ADUM7640
-
detail:
General Purpose Digital Isolator 1000Vrms 6 Channel 1Mbps 15kV/µs CMTI 20-SSOP (0.154", 3.90mm Width)
