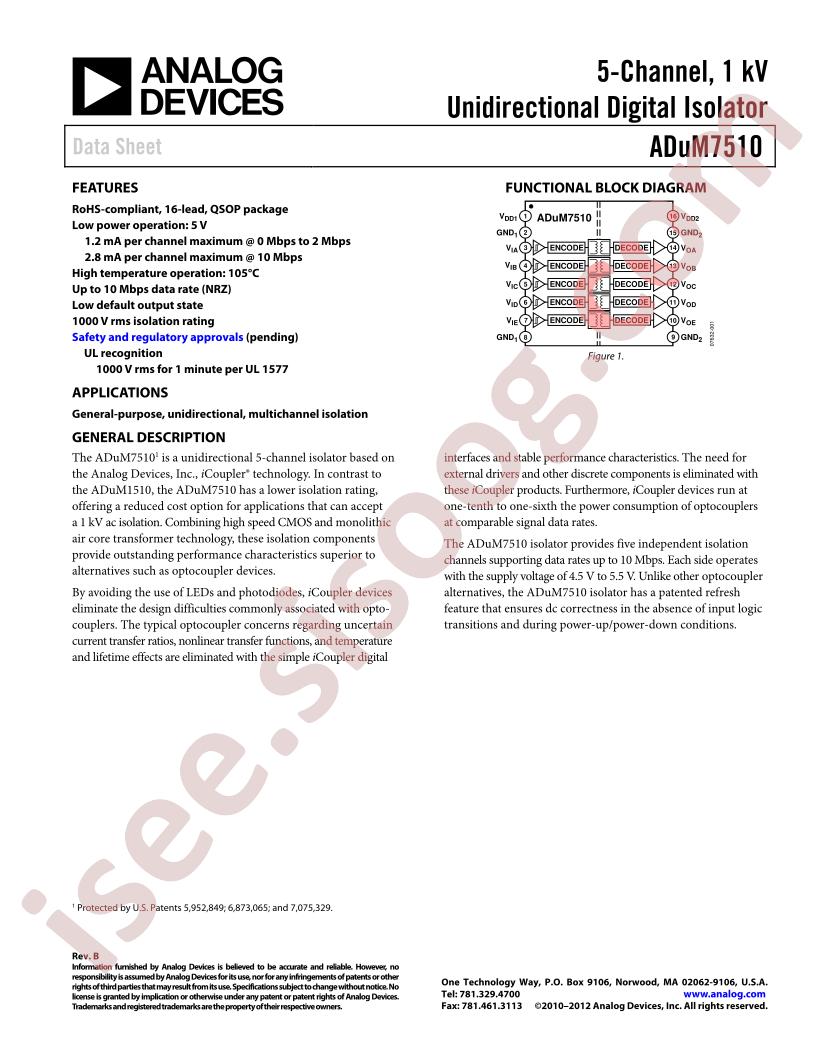

دیتاشیت ADUM7510BRQZ-RL7
مشخصات دیتاشیت
| نام دیتاشیت |
ADuM7510
|
| حجم فایل |
233.897
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Digital Isolators
-
Datasheet:
Analog Devices ADUM7510BRQZ-RL7
-
Applications:
-
-
Isolation Technology:
-
-
Voltage Isolation or Not:
-
-
Package:
QSOP-16-150mil
-
Manufacturer:
Analog Devices
-
Series:
iCoupler®
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
General Purpose
-
Isolated Power:
No
-
Number of Channels:
5
-
Inputs - Side 1/Side 2:
5/0
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
1000Vrms
-
Common Mode Transient Immunity (Min):
10kV/µs
-
Data Rate:
10Mbps
-
Propagation Delay tpLH / tpHL (Max):
40ns, 40ns
-
Pulse Width Distortion (Max):
5ns
-
Rise / Fall Time (Typ):
2.5ns, 2.5ns
-
Voltage - Supply:
4.5V ~ 5.5V
-
Operating Temperature:
-40°C ~ 105°C
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SSOP (0.154", 3.90mm Width)
-
Supplier Device Package:
16-QSOP
-
Base Part Number:
ADUM7510
-
detail:
General Purpose Digital Isolator 1000Vrms 5 Channel 10Mbps 10kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
