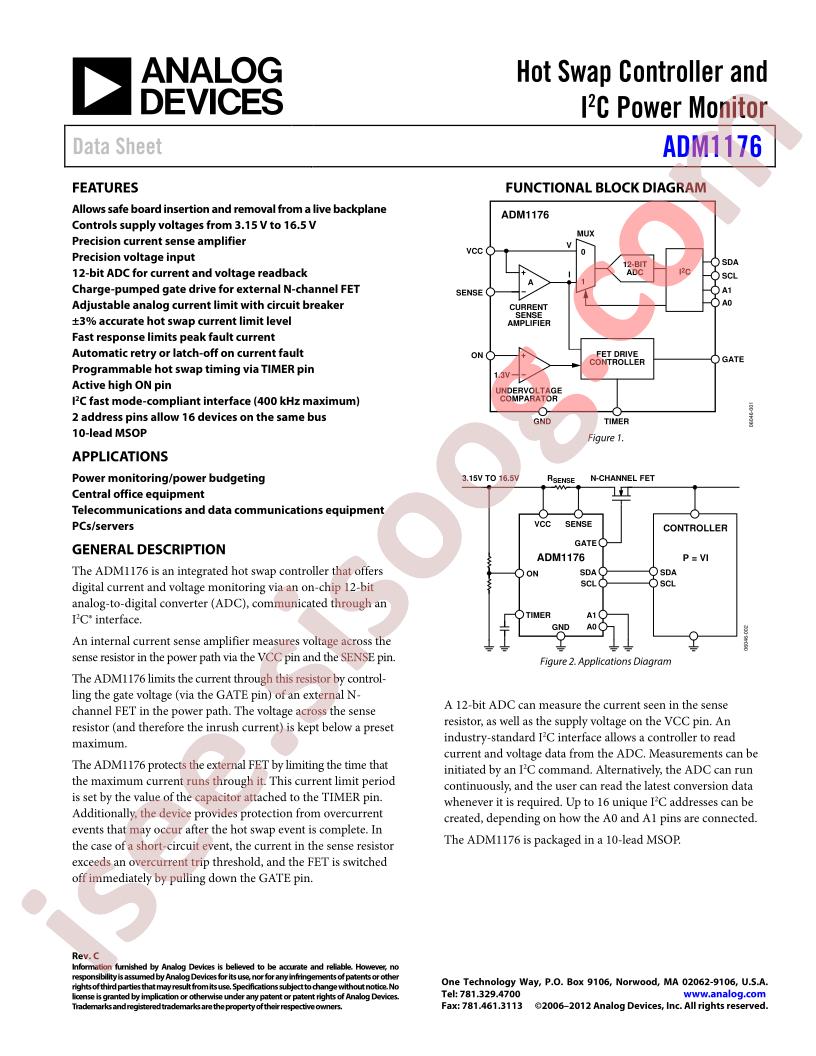

ADM1176-1ARMZ-R7 Datasheet

ADM1176

Datasheet specifications

Datasheet's name ADM1176
File size 552.036 KB
File type pdf
Number of pages 24

Download Datasheet ADM1176

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • RoHS: true
  • Install: Surface MountType
  • Category: TVS/Fuse/Board Level Protection/Surge Suppressors
  • Voltage Rating: 3.15V~16.5V
  • Number of Lines: 1
  • Operating temperature: -40°C~+85°C
  • Package: MSOP-10
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Type: Hot Swap Controller, Monitor
  • Number of Channels: 1
  • Internal Switch(s): No
  • Applications: General Purpose
  • Features: Auto Retry, I²C, UVLO
  • Programmable Features: Current Limit, Fault Timeout, Turn On Voltage
  • Voltage - Supply: 3.15V ~ 16.5V
  • Current - Output (Max): -
  • Current - Supply: 1.7mA
  • Mounting Type: Surface Mount
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Supplier Device Package: 10-MSOP
  • Feature Pins: ON, TIMER
  • Base Part Number: ADM1176
  • detail: Hot Swap Controller, Monitor 1 Channel General Purpose 10-MSOP
