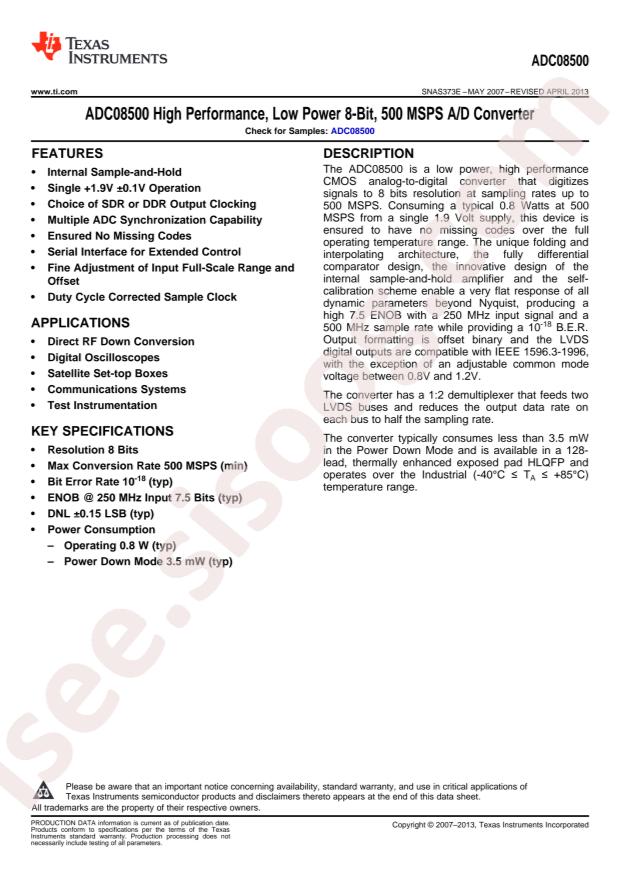

دیتاشیت ADC08500CIYB/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | ADC08500 |
|---|---|
| حجم فایل | 904.087 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 45 |
دانلود دیتاشیت ADC08500 |

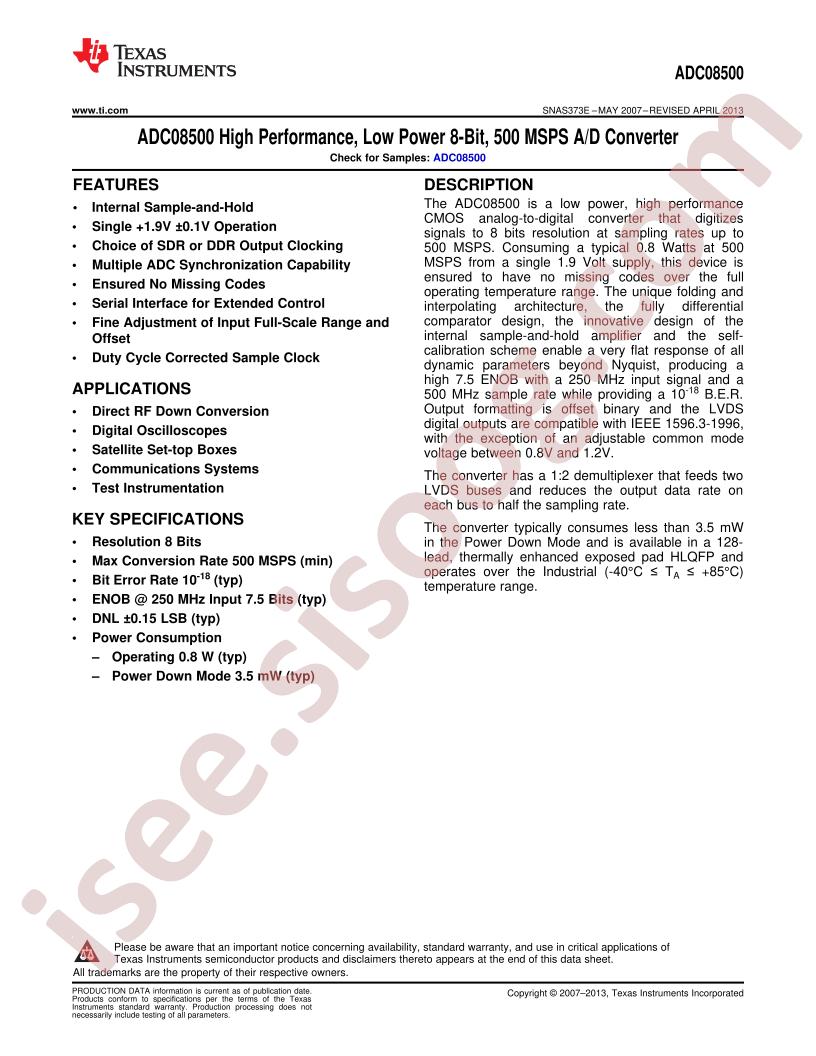

ADC08500 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Texas Instruments ADC08500CIYB/NOPB
- Interface: Parallel
- resolution: 8Bit
- Supply Voltage: 1.8V~2V
- differential input: Yes
- number of channels: 1
- sampling frequency: 500MHz
- Operating Temperature: -40°C~+85°C
- Package: HLQFP-128(20x20)
- Manufacturer: Texas Instruments
- Configuration: MUX-S/H-ADC
- Voltage - Supply, Analog: 1.8V ~ 2V
- Base Part Number: ADC085
- Voltage - Supply, Digital: 1.8V ~ 2V
- Number of Bits: 8
- Series: -
- Package / Case: 128-LQFP Exposed Pad
- Packaging: Tray
- Supplier Device Package: 128-HLQFP (20x20)
- Number of Inputs: 1
- Ratio - S/H:ADC: 1:1
- Reference Type: Internal
- Mounting Type: Surface Mount
- Part Status: Active
- Sampling Rate (Per Second): 500M
- Number of A/D Converters: 1
- Data Interface: LVDS - Parallel
- Architecture: Folding Interpolating
- Input Type: Differential
- Features: -
- detail: 8 Bit Analog to Digital Converter 1 Input 1 Folding Interpolating 128-HLQFP (20x20)
