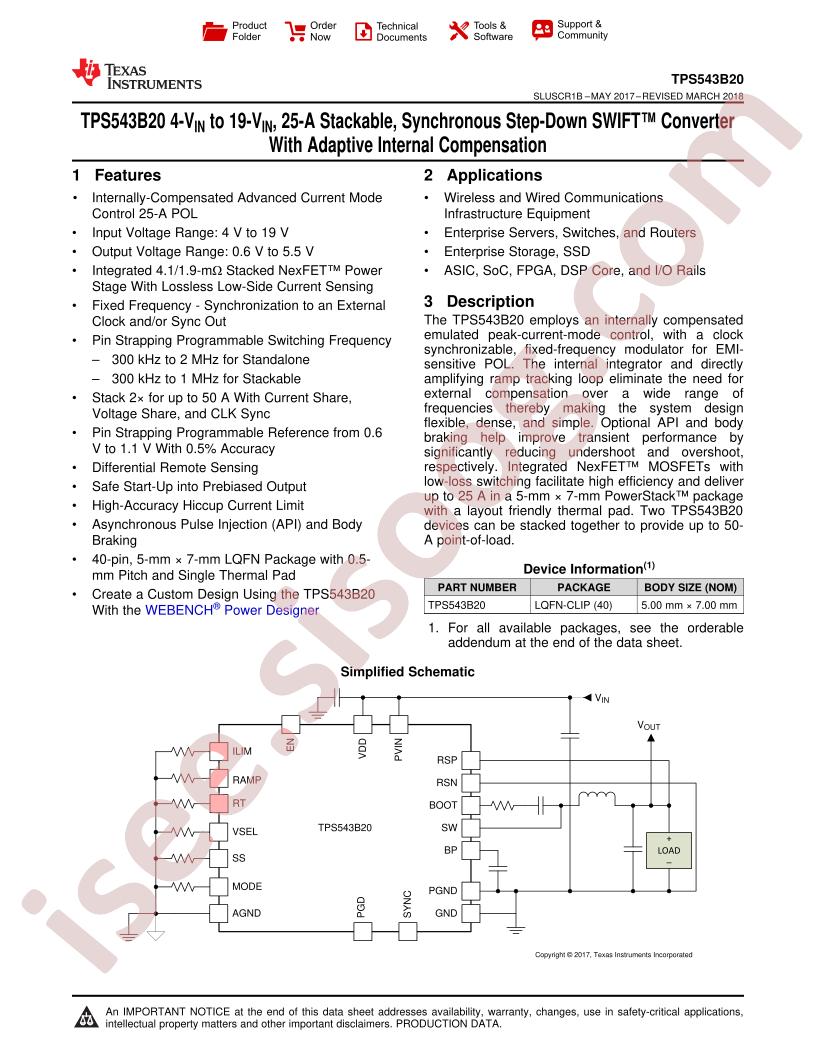

- TPS543B20 Datasheet
TPS543B20 Datasheet Datasheet
Datasheet specifications
| Datasheet's name | TPS543B20 Datasheet |
|---|---|
| File size | 5830.418 KB |
| File type | |
| Number of pages | 46 |
Download Datasheet TPS543B20 Datasheet |
Download Datasheet |
|---|
Other documentations
TPS543B20EVM-799 User Guide 28 pages
Technical specifications
- Series: SWIFT™
- Board Type: Fully Populated
- Outputs and Type: 1, Non-Isolated
- Current - Output: 25A
- Frequency - Switching: 500kHz
- Main Purpose: DC/DC, Step Down
- Part Status: Obsolete
- Base Part Number: TPS543
- Utilized IC / Part: TPS543B20
- Voltage - Input: 5V ~ 19V
- Manufacturer: Texas Instruments
- Voltage - Output: 0.9V
- Supplied Contents: Board(s)
- Regulator Topology: Buck

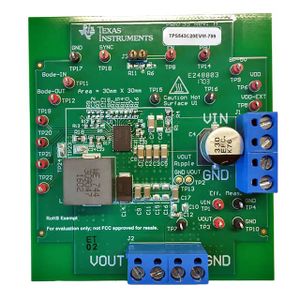

- detail: TPS543B20 SWIFT™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
