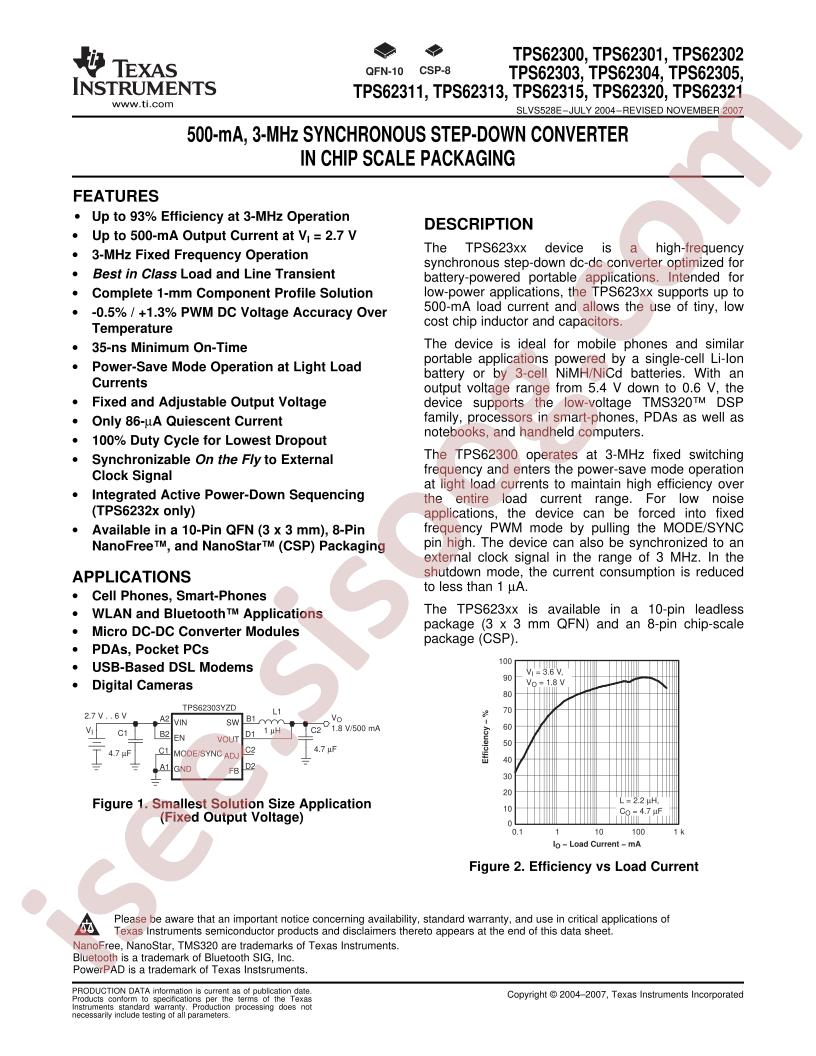

TPS62300-05, TPS62311/13/15/20/21 Datasheet
Datasheet specifications
| Datasheet's name | TPS62300-05, TPS62311/13/15/20/21 |
|---|---|
| File size | 1848.287 KB |
| File type | |
| Number of pages | 35 |
Download Datasheet TPS62300-05, TPS62311/13/15/20/21 |
Download Datasheet |
|---|
Other documentations
TPS62300EVM-085 User Guide 12 pages
Technical specifications
- Series: -
- Board Type: Fully Populated
- Outputs and Type: 4, Non-Isolated
- Current - Output: 500mA, 500mA, 500mA, 500mA
- Frequency - Switching: 3MHz
- Main Purpose: DC/DC, Step Down
- Part Status: Obsolete
- Base Part Number: TPS623
- Utilized IC / Part: TPS62300, TPS62301, TPS62302
- Voltage - Input: 2.7V ~ 6V
- Manufacturer: Texas Instruments
- Voltage - Output: 1.5V, 1.5V, 1.6V, 1.8V
- Supplied Contents: Board(s)
- Regulator Topology: Buck
- detail: TPS62300, TPS62301, TPS62302 - DC/DC, Step Down 4, Non-Isolated Outputs Evaluation Board
