AD7292BCPZ-RL دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت AD7292BCPZ-RL	دانلود دیتاشیت

AD7292 40 pages

RoHS: true
Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)

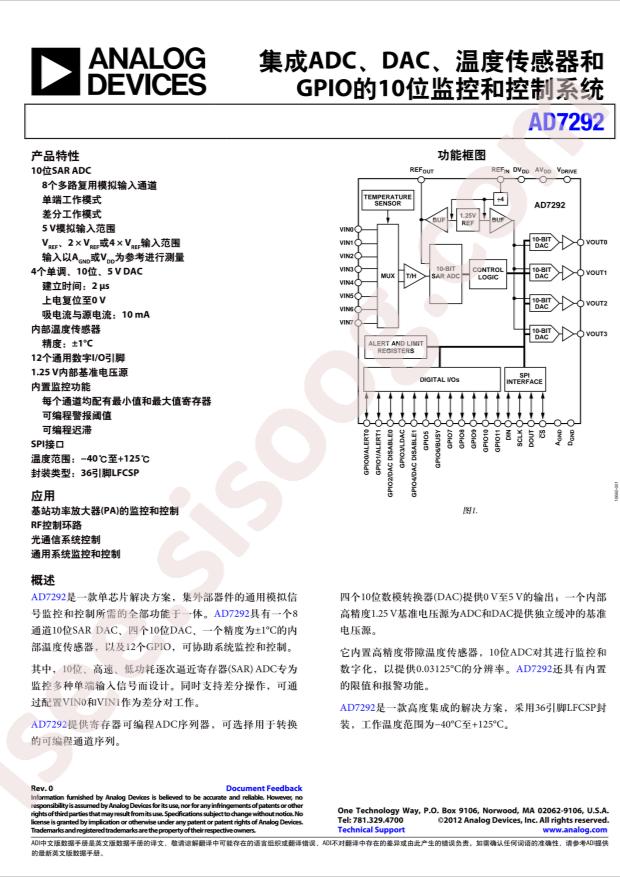

Datasheet: Analog Devices AD7292BCPZ-RL
Package: LFCSP-36
Manufacturer: Analog Devices
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Number of Bits: 10
Sampling Rate (Per Second): 625k
Number of Inputs: 1, 8
Input Type: Differential, Single Ended
Data Interface: SPI
Configuration: MUX-S/H-ADC
Ratio - S/H:ADC: 1:1
Number of A/D Converters: 1
Architecture: SAR
Reference Type: External, Internal
Voltage - Supply, Analog: 5V
Voltage - Supply, Digital: 1.8V ~ 5.25V
Features: Temperature Sensor
Operating Temperature: -40°C ~ 125°C
Package / Case: 36-WFQFN Exposed Pad, CSP
Supplier Device Package: 36-LFCSP-WQ (6x6)
Mounting Type: Surface Mount
Base Part Number: AD7292
detail: 10 Bit Analog to Digital Converter 1, 8 Input 1 SAR 36-LFCSP-WQ (6x6)
