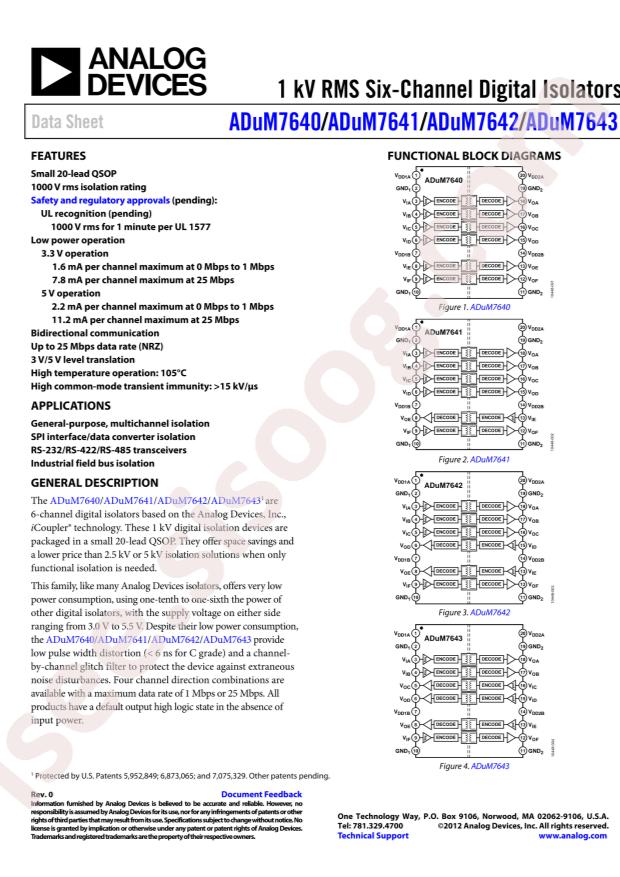

ADUM7643CRQZ-RL7 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ADUM7643CRQZ-RL7
|
|
حجم فایل
|
107.451
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Digital Isolators
-
Datasheet:
Analog Devices ADUM7643CRQZ-RL7
-
Applications:
-
-
Isolation Technology:
-
-
Voltage Isolation or Not:
-
-
Package:
QSOP-20-150mil
-
Manufacturer:
Analog Devices
-
Series:
iCoupler®
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
General Purpose
-
Isolated Power:
No
-
Number of Channels:
6
-
Inputs - Side 1/Side 2:
3/3
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
1000Vrms
-
Common Mode Transient Immunity (Min):
15kV/µs
-
Data Rate:
25Mbps
-
Propagation Delay tpLH / tpHL (Max):
50ns, 50ns
-
Pulse Width Distortion (Max):
6ns
-
Rise / Fall Time (Typ):
2ns, 2ns
-
Voltage - Supply:
3V ~ 5.5V
-
Operating Temperature:
-40°C ~ 105°C
-
Mounting Type:
Surface Mount
-
Package / Case:
20-SSOP (0.154", 3.90mm Width)
-
Supplier Device Package:
20-QSOP
-
Base Part Number:
ADUM7643
-
detail:
General Purpose Digital Isolator 1000Vrms 6 Channel 25Mbps 15kV/µs CMTI 20-SSOP (0.154", 3.90mm Width)
