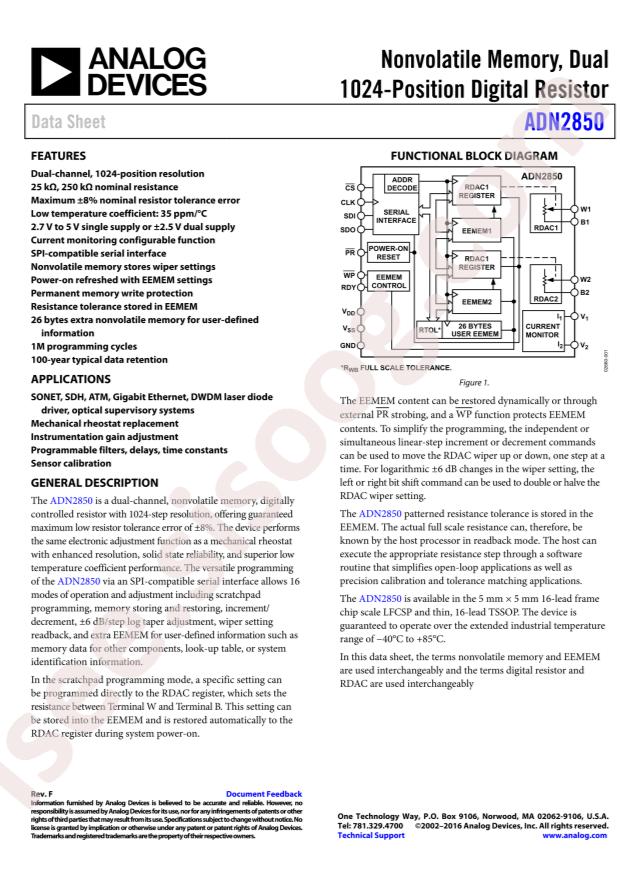

- دیتاشیت ADN2850BCPZ25-RL7
ADN2850BCPZ25-RL7 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | ADN2850BCPZ25-RL7 |
|---|---|
| حجم فایل | 119.291 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |
دانلود دیتاشیت ADN2850BCPZ25-RL7 |
دانلود دیتاشیت |
|---|
سایر مستندات
ADN2850 30 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Digital Potentiometers
- Datasheet: Analog Devices ADN2850BCPZ25-RL7
- Precision: ±8%
- Interface Type: SPI
- Number of Taps: 1024
- Supply Voltage: 2.7V~5.5V;2.25V~2.75V
- Number of Channels: 2
- Operating Temperature: -40°C~+85°C
- Resistance Value (Ohms): 25kΩ
- Temperature Coefficient (Typ): 35ppm/°C
- Package: LFCSP-16
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Taper: Linear
- Configuration: Rheostat
- Number of Circuits: 2
- Resistance (Ohms): 25k
- Interface: SPI
- Memory Type: Non-Volatile
- Voltage - Supply: 2.7V ~ 5.5V, ±2.25V ~ 2.75V
- Features: Cascade Pin
- Tolerance: ±8%
- Mounting Type: Surface Mount
- Supplier Device Package: 16-LFCSP-WQ (5x5)
- Package / Case: 16-WQFN Exposed Pad, CSP
- Resistance - Wiper (Ohms) (Typ): 50
- Base Part Number: ADN2850
- detail: Digital Potentiometer 25k Ohm 2 Circuit 1024 Taps SPI Interface 16-LFCSP-WQ (5x5)
