دیتاشیت LM109K STEEL/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM109, LM309 |
|---|---|
| حجم فایل | 298.253 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |

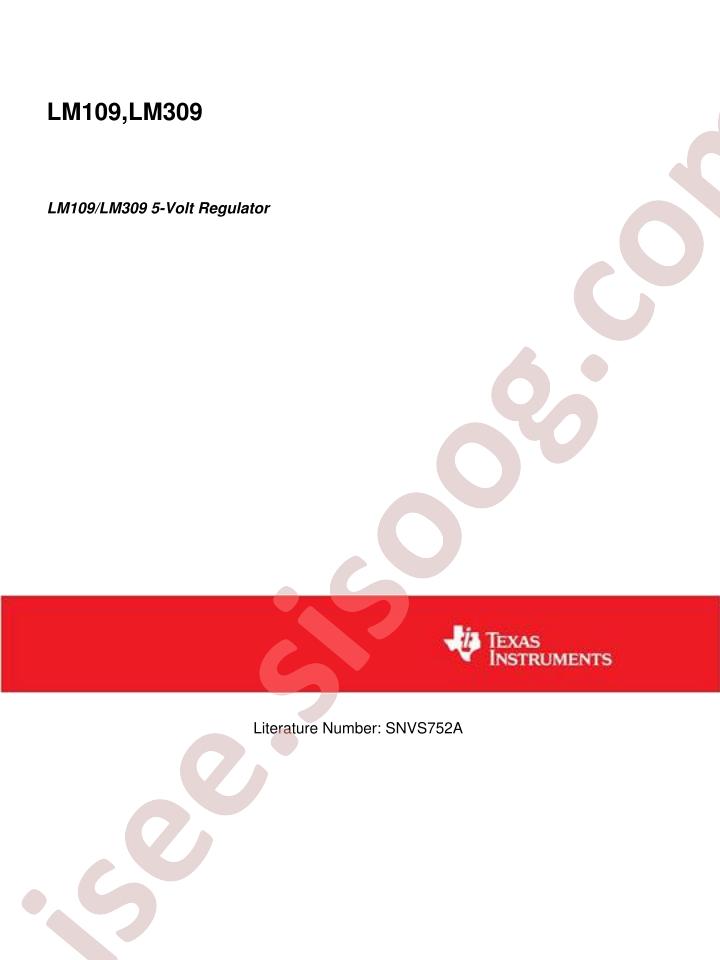

دانلود دیتاشیت LM109, LM309 |
LM109, LM309 Datasheet |
|---|
مشخصات
- Voltage Dropout (Max): -
- Current - Supply (Max): 10mA
- Current - Output: 1A
- Current - Quiescent (Iq): 5.2mA
- Voltage - Input (Max): 25V
- Base Part Number: LM109
- Operating Temperature: -55°C ~ 150°C
- Package / Case: TO-204AA, TO-3
- Voltage - Output (Max): -
- Output Configuration: Positive
- Series: -
- Supplier Device Package: TO-3-2
- PSRR: -
- Part Status: Active
- Mounting Type: Through Hole
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Voltage - Output (Min/Fixed): 5.05V
- Manufacturer: Texas Instruments
- Number of Regulators: 1
- Packaging: Box
- Output Type: Fixed
- detail: Linear Voltage Regulator IC 1 Output 1A TO-3-2
