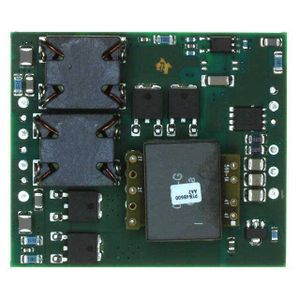

PTB48600AAZ دیتاشیت
مشخصات دیتاشیت
|

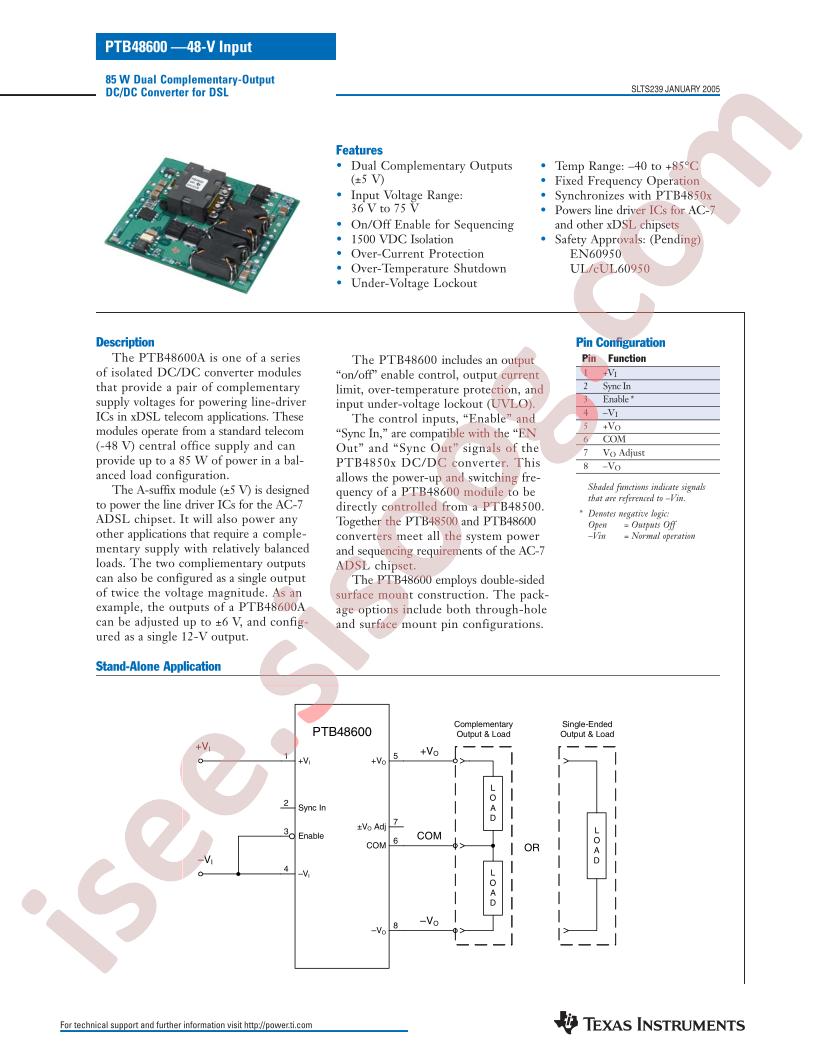

نام دیتاشیت
|
PTB48600
|
|
حجم فایل
|
598.813
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
Type:
Isolated Module
-
Voltage - Output 3:
-
-
Number of Outputs:
2
-
Voltage - Output 2:
-5V
-
Voltage - Input (Max):
75V
-
Base Part Number:
PTB48
-
Size / Dimension:
2.22" L x 1.89" W x 0.50" H (56.4mm x 48.0mm x 12.7mm)
-
Applications:
ITE (Commercial)
-
Power (Watts):
85W
-
Package / Case:
8-SMD Module
-
Efficiency:
85%
-
Current - Output (Max):
8.5A, 8.5A
-
Series:
PTB48600 (85W)
-
Operating Temperature:
-40°C ~ 85°C
-
Voltage - Input (Min):
36V
-
Voltage - Isolation:
1.5kV
-
Part Status:
Not For New Designs
-
Mounting Type:
Surface Mount
-
Voltage - Output 1:
5V
-
Manufacturer:
Texas Instruments
-
Packaging:
Tray
-
Features:
Remote On/Off, OCP, OTP, UVLO
-
detail:
Isolated Module DC DC Converter 2 Output 5V -5V 8.5A, 8.5A 36V - 75V Input
