دیتاشیت AD7988-1BRMZ-RL7

AD7988-1,-5

مشخصات دیتاشیت

نام دیتاشیت AD7988-1,-5
حجم فایل 583.76 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

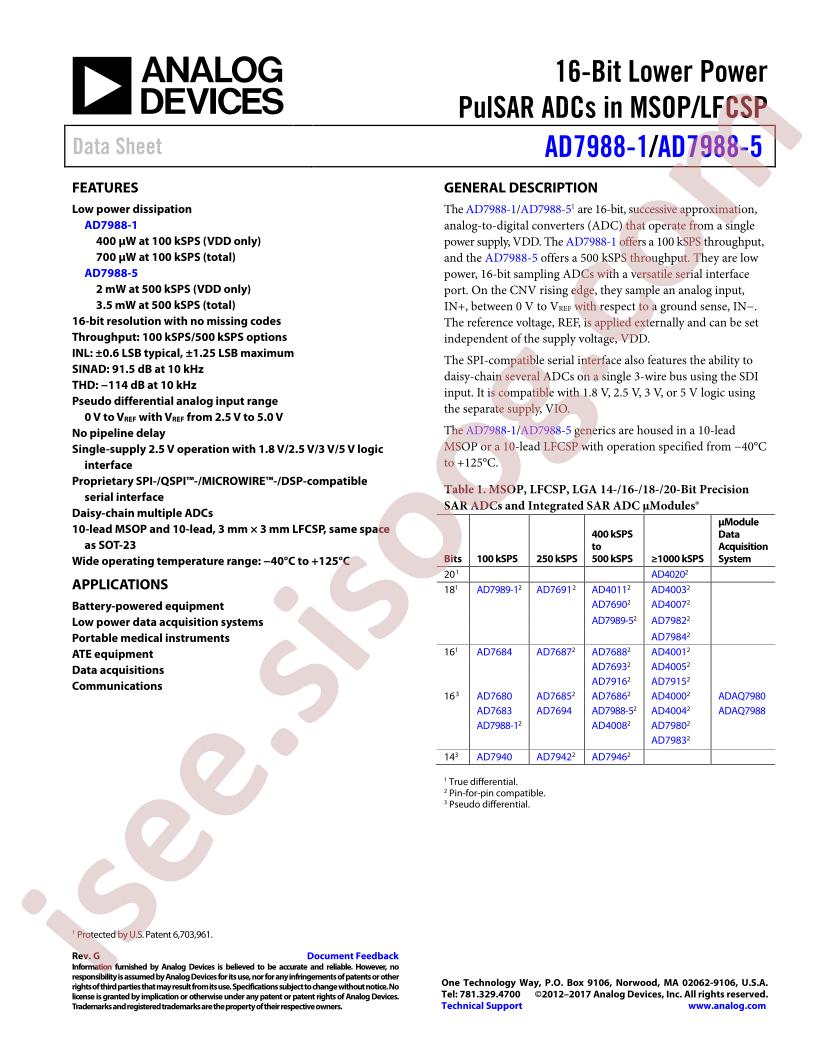

دانلود دیتاشیت AD7988-1,-5

AD7988-1,-5 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices AD7988-1BRMZ-RL7
  • Interface: SPI;DSP
  • resolution: 16Bit
  • Supply Voltage: 2.375V~2.625V
  • number of channels: 1
  • sampling frequency: 100kHz
  • Operating Temperature: -40°C~+125°C
  • Package: MSOP-10
  • Manufacturer: Analog Devices
  • Series: PulSAR®
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 16
  • Sampling Rate (Per Second): 100k
  • Number of Inputs: 1
  • Input Type: Pseudo-Differential
  • Data Interface: SPI, DSP
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External
  • Voltage - Supply, Analog: 2.375V ~ 2.625V
  • Voltage - Supply, Digital: 2.375V ~ 2.625V
  • Features: -
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Supplier Device Package: 10-MSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD7988
  • detail: 16 Bit Analog to Digital Converter 1 Input 1 SAR 10-MSOP
