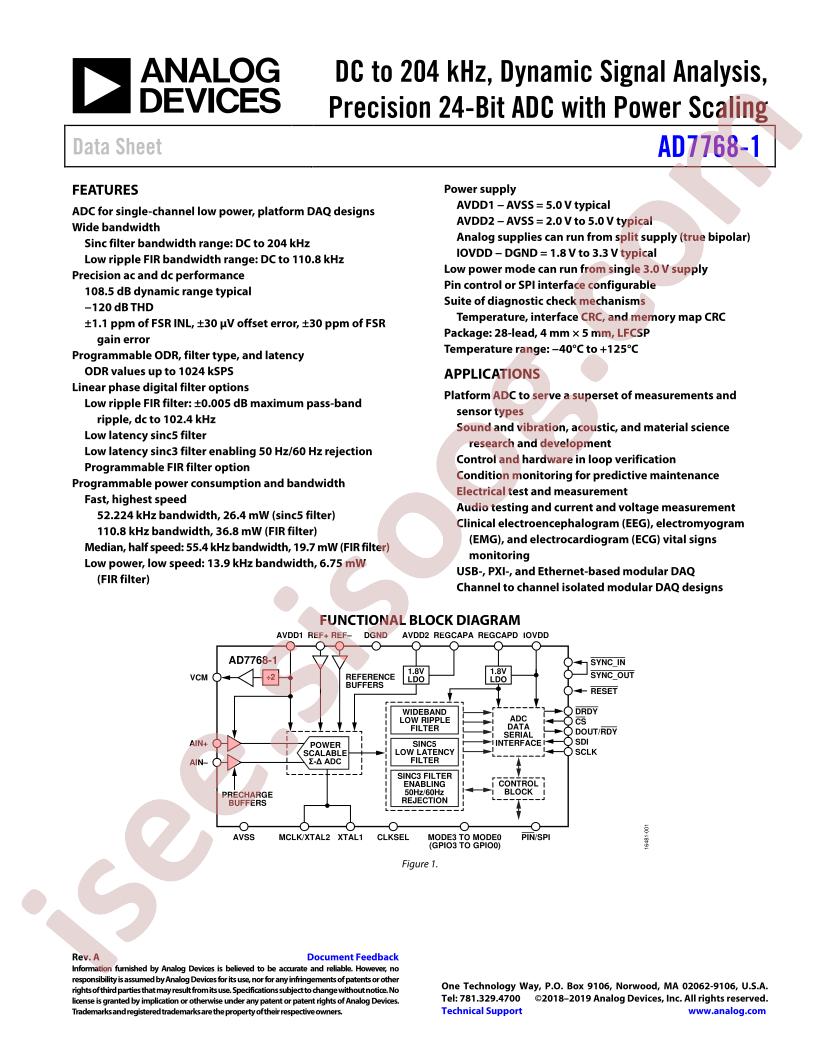

دیتاشیت AD7768-1BCPZ-RL7
مشخصات دیتاشیت
| نام دیتاشیت |
AD7768-1
|
| حجم فایل |
1759.501
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
80
|
مشخصات
-
Manufacturer:
Analog Devices Inc.
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Number of Bits:
24
-
Sampling Rate (Per Second):
1.024M
-
Number of Inputs:
1
-
Input Type:
Differential, Pseudo-Differential
-
Data Interface:
Serial, SPI
-
Configuration:
ADC
-
Ratio - S/H:ADC:
0:1
-
Number of A/D Converters:
1
-
Architecture:
Sigma-Delta
-
Reference Type:
External
-
Voltage - Supply, Analog:
2V ~ 5.5V
-
Voltage - Supply, Digital:
-
-
Features:
Simultaneous Sampling
-
Operating Temperature:
-40°C ~ 125°C
-
Package / Case:
28-WFQFN Exposed Pad, CSP
-
Supplier Device Package:
28-LFCSP (5x4)
-
Mounting Type:
Surface Mount
-
detail:
24 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 28-LFCSP (5x4)
