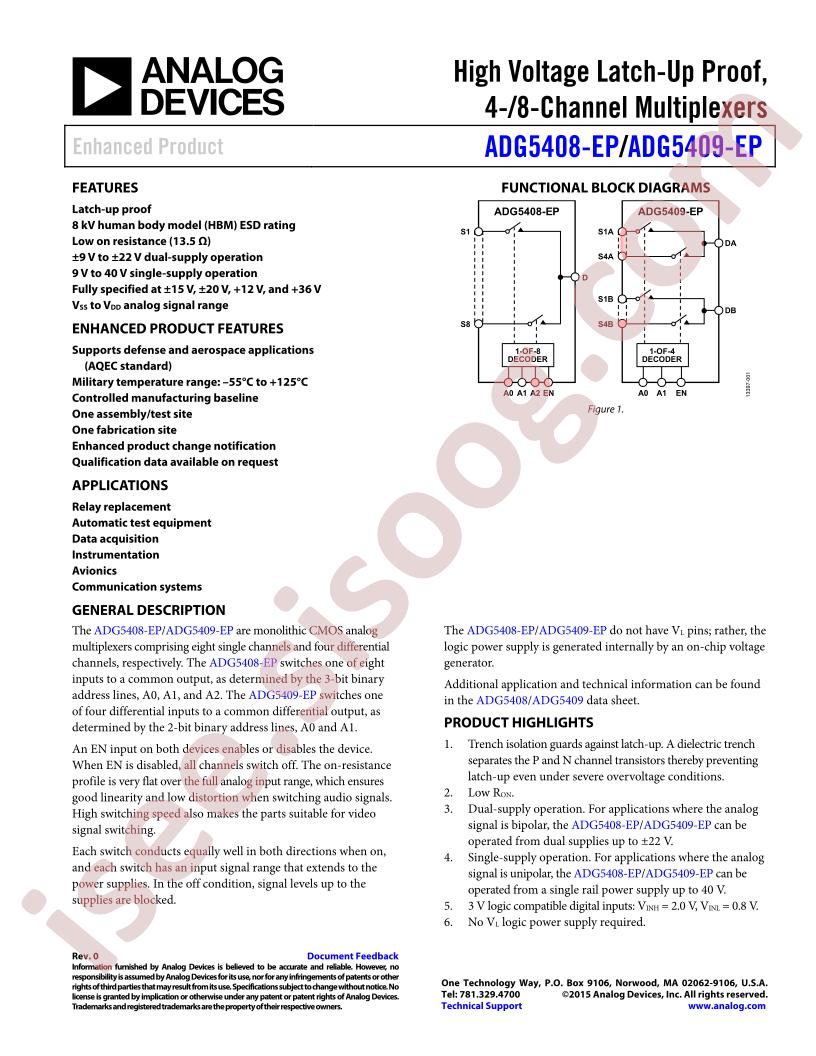

ADG5408-EP,09-EP دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت ADG5408-EP,09-EP	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Analog Devices ADG5409TCPZ-EP-RL7
Turn-on time: 165ns
Turn-off time: 153ns
Supply Voltage: 9V~40V
Switch Circuit: 单刀四掷(SP4T)
Number of Channels: 2
On-State Resistance (Max): 14Ω
Package: LFCSP-16-WQ(4x4)
Manufacturer: Analog Devices
Series: -
Packaging: Tray
Part Status: Active
Multiplexer/Demultiplexer Circuit: 4:1
Number of Circuits: 2
Channel-to-Channel Matching (ΔRon): 300mOhm
Voltage - Supply, Single (V+): 9V ~ 40V
Voltage - Supply, Dual (V±): ±9V ~ 22V
Switch Time (Ton, Toff) (Max): 165ns, 153ns
-3db Bandwidth: 88MHz
Charge Injection: 155pC
Channel Capacitance (CS(off), CD(off)): 17pF, 48pF
Current - Leakage (IS(off)) (Max): 250pA
Crosstalk: -60dB @ 1MHz
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 16-WQFN Exposed Pad, CSP
Supplier Device Package: 16-LFCSP-WQ (4x4)
Base Part Number: ADG5409
detail: 2 Circuit IC Switch 4:1 14Ohm 16-LFCSP-WQ (4x4)
