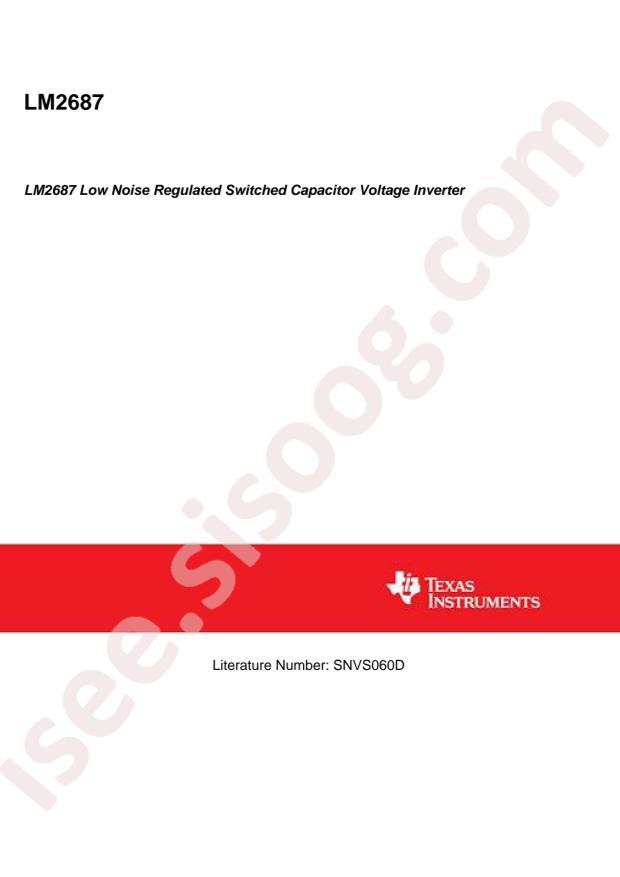

دیتاشیت LM2687MM/NOPB
مشخصات دیتاشیت
| نام دیتاشیت |
LM2687
|
| حجم فایل |
335.839
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
-
-
Datasheet:
Texas Instruments LM2687MM/NOPB
-
Input Voltage:
-
-
Number of Outputs:
-
-
Switching Frequency:
-
-
Output Current (Max):
-
-
Synchronous Rectification:
-
-
Package:
MSOP-8
-
Manufacturer:
Texas Instruments
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Output Configuration:
Negative
-
Base Part Number:
LM2687
-
Packaging:
Cut Tape (CT)
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Frequency - Switching:
110kHz
-
Supplier Device Package:
8-VSSOP
-
Part Status:
Obsolete
-
Current - Output:
10mA
-
Series:
-
-
Voltage - Input (Max):
5.5V
-
Synchronous Rectifier:
No
-
Voltage - Output (Min/Fixed):
-1.5V
-
Voltage - Input (Min):
2.7V
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
-5.2V
-
Output Type:
Adjustable
-
detail:
Charge Pump Switching Regulator IC Negative Adjustable -1.5V 1 Output 10mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
