دیتاشیت MIC5305-3.0YD5-TR
مشخصات دیتاشیت
| نام دیتاشیت | MIC5305 |
|---|---|
| حجم فایل | 353.227 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |

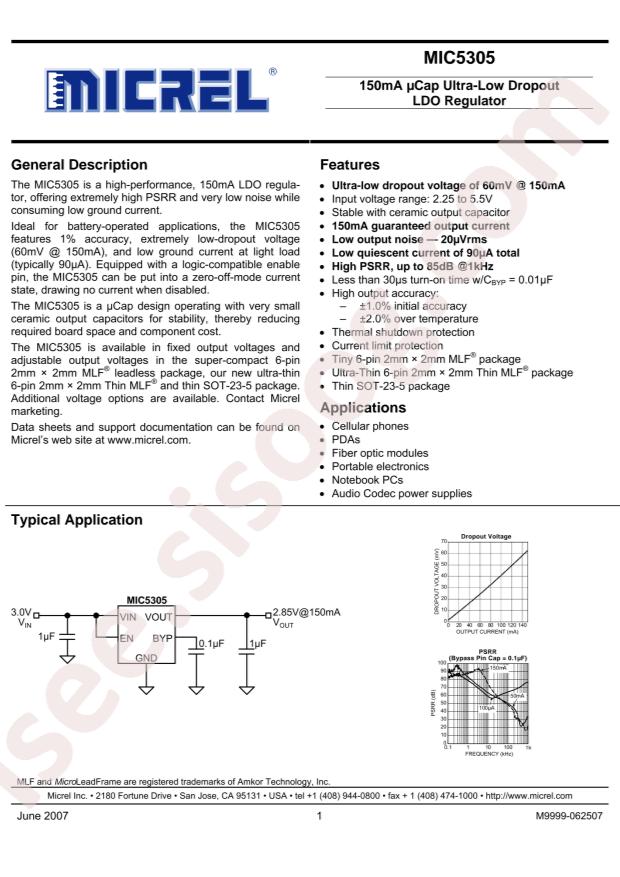

دانلود دیتاشیت MIC5305 |
MIC5305 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Microchip Tech MIC5305-3.0YD5-TR
- Output Type: Fixed
- Output Current: 150mA
- Output Voltage: 3V
- Dropout Voltage: 110mV@(150mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 150uA
- Power Supply Rejection Ratio (PSRR): 85dB@(1kHz),65dB@(10kHz)
- Package: TSOT-23-5
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.85V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 150µA
- PSRR: 85dB ~ 65dB (1kHz ~ 10kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package: TSOT-23-5
- Base Part Number: MIC5305
- detail: Linear Voltage Regulator IC 1 Output 150mA TSOT-23-5
