LM1086CSX-2.85/NOPB Datasheet

LM1086

Datasheet specifications

Datasheet's name LM1086
File size 2739.72 KB
File type pdf
Number of pages 34

Download Datasheet LM1086

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Voltage Dropout (Max): 1.5V @ 1.5A
  • Current - Supply (Max): 10mA
  • Current - Output: 1.5A
  • Current - Quiescent (Iq): 5mA
  • Voltage - Input (Max): 27V
  • Base Part Number: LM1086
  • Operating Temperature: 0°C ~ 125°C

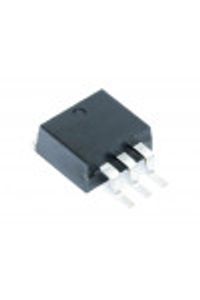

  • Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
  • Voltage - Output (Max): -
  • Output Configuration: Positive
  • Series: -
  • Supplier Device Package: DDPAK/TO-263-3
  • PSRR: 72dB (120Hz)
  • Part Status: Obsolete
  • Mounting Type: Surface Mount
  • Control Features: -
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • Voltage - Output (Min/Fixed): 2.85V
  • Manufacturer: Texas Instruments
  • Number of Regulators: 1
  • Packaging: Tape & Reel (TR)
  • Output Type: Fixed
  • detail: Linear Voltage Regulator IC 1 Output 1.5A DDPAK/TO-263-3
