دیتاشیت AD7938BCPZ-6REEL7
مشخصات دیتاشیت
| نام دیتاشیت | AD7938-6 |
|---|---|
| حجم فایل | 727.176 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |

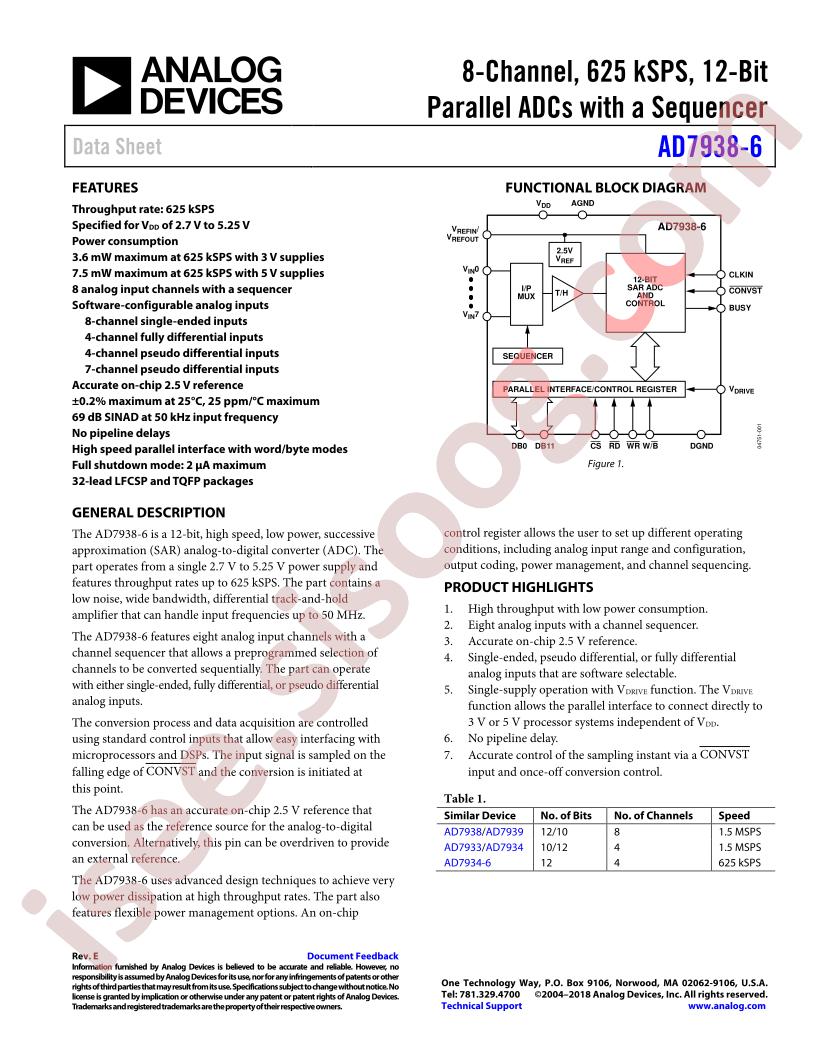

دانلود دیتاشیت AD7938-6 |
AD7938-6 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD7938BCPZ-6REEL7
- Interface: Parallel
- resolution: 12
- Supply Voltage: 2.7V~5.25V
- number of channels: 4;7;8
- sampling frequency: 1.5MHz
- Operating Temperature: -40°C~+85°C
- Package: LFCSP-32
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tray
- Part Status: Active
- Number of Bits: 12
- Sampling Rate (Per Second): 1.5M
- Number of Inputs: 4, 7, 8
- Input Type: Differential, Pseudo-Differential, Single Ended
- Data Interface: Parallel
- Configuration: MUX-S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: SAR
- Reference Type: External, Internal
- Voltage - Supply, Analog: 2.7V ~ 5.25V
- Voltage - Supply, Digital: 2.7V ~ 5.25V
- Features: -
- Package / Case: 32-VFQFN Exposed Pad, CSP
- Supplier Device Package: 32-LFCSP-VQ (5x5)
- Mounting Type: Surface Mount
- Base Part Number: AD7938
- detail: 12 Bit Analog to Digital Converter 4, 7, 8 Input 1 SAR 32-LFCSP-VQ (5x5)
